Never has so much performance been packed into such a small package. The Veeder-Root Brand C346 is a full featured preset counter that can be field configured to perform as a rate meter or an elapsed time counter, both with outputs. Choose an LCD display or the industry’s only 6 digit, 1/16 DIN preset counter, with an LED display.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A C346

Type

 N/A Multifunctional Counter

Count Speed

 N/A 30 Hz or 5 kHz, field selectable

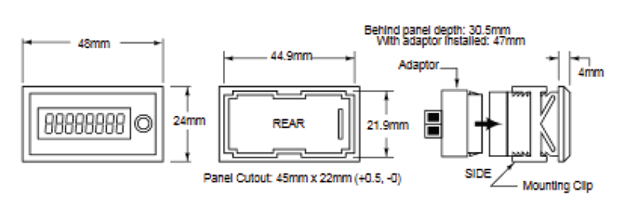

Height

 N/A 48 mm

Width

 N/A 48 mm

Depth

 N/A 93.5 mm

Reset

 N/A Front panel (selectable enable), remote input or automatic

Operating Temperature

 N/A 32 to 122 ºF0 to 50 ºC

Counting Modes

 N/A Add/Subtract, Add/Add, Count/Direction, or Quadrature, field selectable

Calibrator

 N/A 0.001 to 9.999 multiplier common to inputs A and B

Storage Temperature

 N/A - 20 to 60 ºC- 4 to 140 ºF

Count Input

 N/A Contact Closure, Sourcing, Sinking; low < 2.0 VDC, high > 8.0 VDC; 40 VDC max.

Control Inputs

 N/A Remote Reset and Program Enable; low < 2.0 VDC, high > 8.0 VDC; 40 VDC max.

Terminals

 N/A Screw Type

Additional Information

N/A Functionality and simplicity go hand in hand - all models can be configured through the front panel to accept inputs from dry contracts, encoders, or photoelectric or proximity switches with either PNP or NPN outputs. Its input can be easily scaled using a multiplier constant, allowing display in Feet, Meters, Gallons, etc.

Important parameters such as the presets and the prescale value can be called up with direct access keys. Preset values can be quickly entered or changed using a simple button per digit method. Single or dual preset models are available. Each preset features a transistor output, which can interface to an external SSR or a PLC, and a relay output for directly driving a load. Outputs can be programmed for latching or timed operation. An auxiliary power supply simplifies wiring of inputs, and the draw-out case enhances serviceability.

Features

N/A

  • Choice of LED or LCD display
  • Scale Function enables display of Engineering Units (Length, Volume)
  • Button per digit setting and direct access keys simplify setup and operation
  • Add/Subtract, Add/Add, and quadrature input modes
  • Accepts input signals from a variety of sources
  • Can be field configured to perform rate metering or timing functions
  • Relay and transistor outputs programmable for latching or time operation
  • Several reset options
  • 12 - 24 VDC auxiliary supply for powering input devices
  • NEMA 4/IP65 rated front panel for use in washdown environments
