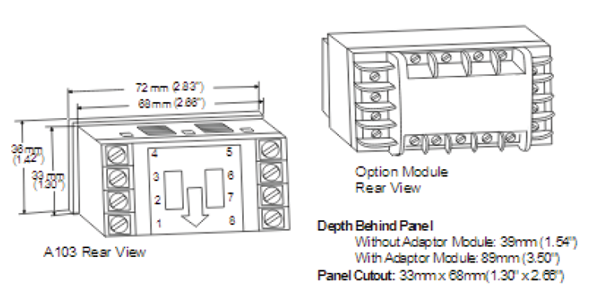

The A103 Series Totalizers provide a range of capabilities unequaled in products of similar size and cost. In addition to the totalizing models shown here, the A103 series also includes matching indicators for timing and rate/speed metering and models with a preset output for control by count or time. All are in a uniform 36 x 72 millimeters bezel size package, enhancing your control panel with a family of devices that look and program alike.

A supertwist LCD display with thick 12 mm (0.47") high digits allows for easy viewing at a glance and feature display-backlight capability by simply connecting an external 12VDC supply.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A A103T

Type

 N/A Totalizer

Mounting

 N/A Panel Mount with supplied mounting bracket and gasket

Connections

 N/A Screw Terminals

Operating Temperature

 N/A 32 to 131 ºF0 to 55 ºC

Display

 N/A 12 mm high, Supertwist LCD; 8 digits; "Low Bat" indicator

Power Source

 N/A Single or dual 3V Lithium battery; Typical 5 years life with single battery, 10 years with dual batteries.
Field-replaceable batteries

High Speed Count Input

 N/A PNP or square wave pulse; 10 kHz max (50% duty cycle) 45 µ sec min pulse width; Low State: < 1.0 VD High State: > 2.0 VDC (28VDC max)

Backlighting

 N/A Green Illumination over whole viewable area. Requires 10 to 28 VDC power source

Weight

 N/A 64 g2.25 oz

Additional Information

N/A Powered by an internal 3 volt battery, the A103's unique design has two battery slots; this allows battery changeover without loss of memory. Numerous types of inputs can be accepted giving you a totally self-contained system not requiring external power.

The A103 totalizers are further enhanced by a series of quick-attach option modules. These can provide a power supply for sensors and display backlighting, and accept high or low voltage AC or DC input signals.

Features

N/A

  • Matching predetermining counter, time and rate indicators and controllers available - look great together on a panel
  • Bidirectional models with input scale multiplier, polarity sign, decimal point selection, and programmable reset value
  • High visibility 8-digit LCD display with backlighting capability standard
  • Long life 3 Volt lithium battery eliminates the need for external power
  • Accepts input signals from a variety of sources
  • Resettable remotely or from the front panel
  • Option modules provide additional functionality and added convenience - fast, easy installation
  • NEMA 4X/IP65 rated front panel for use in washdown environment
