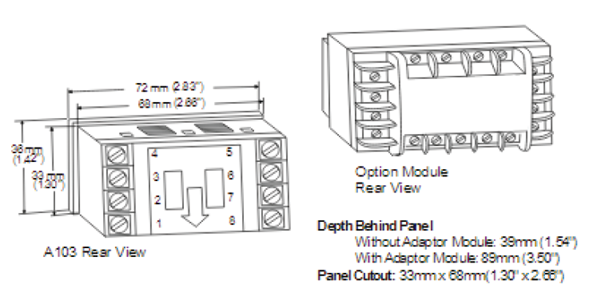

The A103 Series Rate Meters with Totalizer are extremely compact indicators providing high visibility readout of virtually any rate: gallons/ minute, feet/minute, parts/hour, etc. - plus a total count. Easy to program input-scaling, decimal point, and "dummy-zero" features assure maximum flexibility for any application. The A103 series also includes matching indicators for count totalization, elapsed time indication, simple speed display (RPM) as well as models with a preset output for control by count or time. All are in a uniform 36 x 72 millimeters bezel size package, enhancing your control panel with a family of devices that look and program alike.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A A103RM

Type

 N/A Totalizer

Mounting

 N/A Panel Mount with supplied mounting bracket and gasket

Connections

 N/A Screw Terminals

Operating Temperature

 N/A 32 to 131 ºF0 to 55 ºC

Display

 N/A 12 mm high, Supertwist LCD; 8 digits; "Low Bat" indicator

Power Source

 N/A Single or dual 3V Lithium battery; typical 5 years life with single battery, 10 years with dual batteries

High Speed Count Input

 N/A PNP or square wave pulse; 10 kHz max (50% duty cycle) 45 µ sec min pulse width; Low State: < 1.0 VD High State: > 2.0 VDC (28VDC max)

Backlighting

 N/A Green Illumination over whole viewable area. Requires 10 to 28 VDC power source

Weight

 N/A 64 g2.25 oz

Additional Information

N/A A supertwist LCD display with thick 12 mm (0.47") high digits allows for easy viewing at a glance and feature display-backlight capability by simply connecting an external 12VDC supply. Powered by an internal 3 volt battery, the A103's unique design has two battery slots; this allows battery changeover without loss of memory.

The A103 Series Rate Meters with Totalizer are further enhanced by a series of quick-attach option modules. These can provide a power supply for sensors and display backlighting, and accept high or low voltage AC or DC input signals.

Features

N/A

  • Matching totalizing and preset counters, elapsed time indicators, preset timers, and advanced feature rate indicators look great together on a panel
  • High visibility LCD, 4-digit rate and 8-digit totals display with programmable decimal point and "dummy zero"
  • Backlighting capability standard
  • Dual input scale multipliers for independent engineering unit calibration of rate and total
  • Long life 3 Volt lithium battery eliminates the need for external power
  • Option modules provide additional functionality and added convenience - fast, easy installation
  • NEMA 4X/IP65 rated front panel for use in washdown environments
