The 7999 MITE Series is a versatile family of LCD totalizers that includes unidirectional and bidirectional models. Based on the latest CMOS circuitry, they feature a long-life internal power source, high count-speed capability, and eight digit liquid crystal display. The bidirectional MITE totalizer provides count/direction operation - one input receives count pulses, while a second input controls counting direction.
Unit of Measure

Technical Specs

Brands

N/A
Veeder-Root

Model

N/A 7999

Type

N/A Electronic Totalizer

Reset

N/A Front panel push-button and remote reset
Panel Reset Enable: Link to common to enable front-panel reset button
Remote Reset: Provides reset via remote contact closure or open collector transistor

Connections

N/A Integral plug; Mating connector provided; Accessory screw termination available

Operating Temperature

N/A 14 to 144 ºF-10 to 60 ºC

Display

N/A 7 mm Character Height; Eight-Digit LCD

Storage Temperature

N/A -20 to 60 ºC4 to 144 ºF

Power

N/A Internal lithium battery; Ten-year typical life

Environmental Integrity

N/A Front panel meets National Electrical Manufacturers Association (NEMA-4)/Ingress Protection (IP65) requirements, when used with clip mount and gasket provided

Additional Information

N/A 7999 MITE Series totalizers are rated NEMA-4/ IP65 for water and dust-proof integrity of their front panels when mounted with the provided gasket. Instant reset to zero is accomplished via its front panel push-button or remote-reset command. For non-reset applications, the panel reset can be disabled.

Features

N/A

  • Front panel and remote reset
  • NEMA-4/IP65 environmental sealing
  • Easy-to-read, high contrast Liquid Crystal Display (LCD)
  • UL recognized, CSA Certified
  • 10-year battery life
  • Quick and easy panel mounting with slide-on clips
  • Supplied with prewired plug-in connector
  • Accessory snap-on adaptors for high voltage count signals

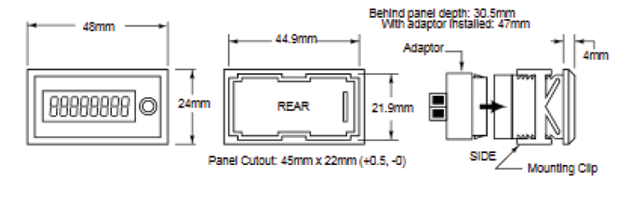

  • Small overall size - minimal 1.2" (30 mm) depth behind panel
  • Very low priced - without sacrifice of performance or reliability
