The 7790 Series is a non-reset totalizer that delivers excellent performance and reliability characteristics for a minimal price. The 7791 Series includes a push-bar reset feature.

These totalizers have a compact size and five or six digit indication.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A 7790/7791

Type

 N/A Electro-Mechanical Totalizer

Count Speed

 N/A 600 cpm (800 cpm available as special option)

Height

 N/A 0.156 in4.0 mm

Width

 N/A 0.070 in1.8 mm

Color of Figures

 N/A White on Black

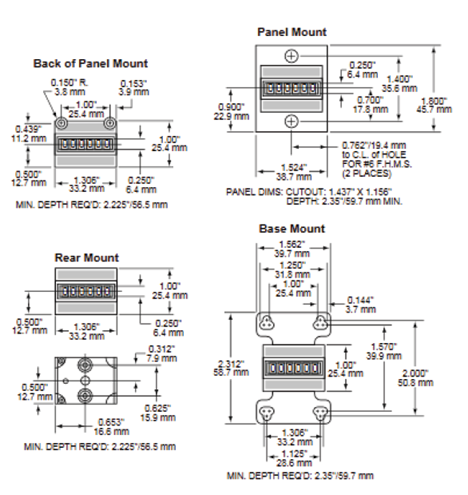

Mounting

 N/A Base Panel Rear, and Back of Panel

Alternating Current (AC) Supply Voltage

 N/A 24 V48 V115 V

Operating Temperature

 N/A 32 to 122 ºF0 to 50 ºC

Construction

 N/A Case and Panel Mounting Flange: Polyphenylene Oxide Crystal: Polycarbonate Frame, Core, Armature and Base Mounting Flange: Plated steel Shafts: Brass Springs: Music Wire Wheels, Verge and Pinions: Acetal Resin

Minimum Count Pulse Timing

 N/A 50 ms minimum on time and off time

Power Consumption

 N/A 5 VA AC, 1.5 VA DC

Net Weight

 N/A 3.2 oz90 g

Direct Current (DC) Voltage

 N/A 6 V12 V24 V

Voltage Tolerance

 N/A ±10% or 10 volts, whichever is limiting

Continuous Coil Energization

 N/A Voltage can be applied continuously without causing damage

Features

N/A

  • Compact size
  • Four standard mounting styles
  • Five and six figure indication standard-high contrast white on black
  • Capable of speeds up to 600 counts/minute
  • Count coil can be continuously energized
  • Long service life
  • Standard models for a broad range of AC and DC voltages
  • UL recognized; CSA certification available
