Series 7495 Small Nonreset Electric Totalizers are low priced, yet have superior performance and reliability characteristics. Tamper-resistant case gives protection from dirt and foreign material.

Especially useful is Series 7495’s ability to accept diode suppression of its count coil without loss of efficiency at full operating speed of 1000 counts per minute. This feature allows 100% suppression of inductive voltage backspikes. It also eliminates user design problems in overcoming breakdowns in solid state drive circuits.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A 7495

Type

 N/A Nonreset Electric Totalizer

Count Speed

 N/A 1000 cpm, with or without diode suppression

Number of Figures

 N/A 6

Height

 N/A 0.156 in3.96 mm

Width

 N/A 0.099 in2.51 mm

Color of Figures

 N/A White on Black

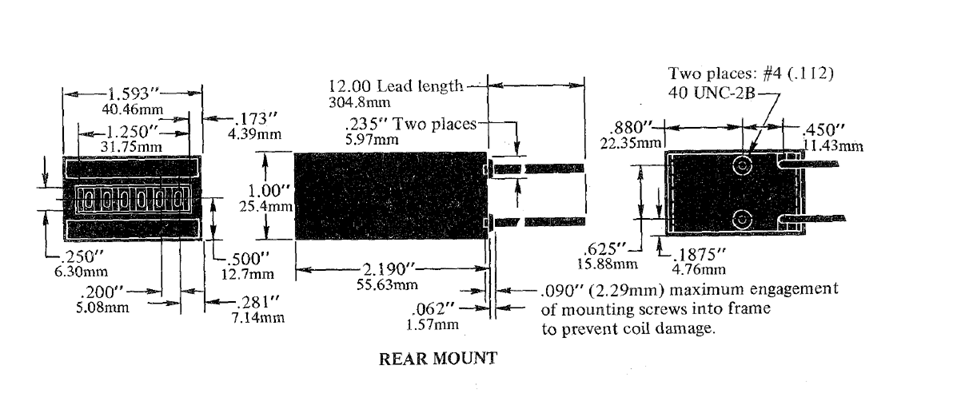

Mounting

 N/A Rear Mount

Power Consumption

 N/A 2.5 W

Temperature Range

 N/A 32 to 120 ºF0 to 49 ºC

Net Weight

 N/A 4 oz113.4 g

Applications

N/A Typical applications include warranty recording, metering, message registering and many other event totalizing situations. Use is found in office machines, communication equipment, instruments, photographic equipment, and many industrial applications.

Additional Information

N/A Another important feature is its ability to withstand continuous application of power without danger of coil burnout.

Optional models are available for wide temperature ranges from -40º to +150ºF. These are ideal for totalizing in outdoor applications - summer and winter.

Features

N/A

  • Count coil can be continuously energized - without ever damaging the counter.
  • Accepts diode suppression for 100% backspike protection at full speed operation.
  • Long life, high dependability.
  • Tamper-resistant construction.
  • Low power consumption - only 2.5 watts.
  • Veeder-Root/Military figure style for maximum readability.
  • UL recognized and CSA approved.
  • Optional models for high reliability in wide temperature ranges.
