The 7437 and 7438 Series are our Veeder-Root standard offering for electro-mechanical counters. This highly reliable family of counters can be actuated by AC or DC voltage pulses as specified. The units are tamper resistant and use thermo-stable materials for long term reliability. Most are 5 digit but 6 and 7 digit models are available.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A 7437/7438

Type

 N/A Reset and Non-Reset Totalizer

Speed

 N/A 600 cycles/min

Number of Figures

 N/A Reset: 5
Nonreset: 5, 6, 7

Color of Figures

 N/A White on Black

Mounting

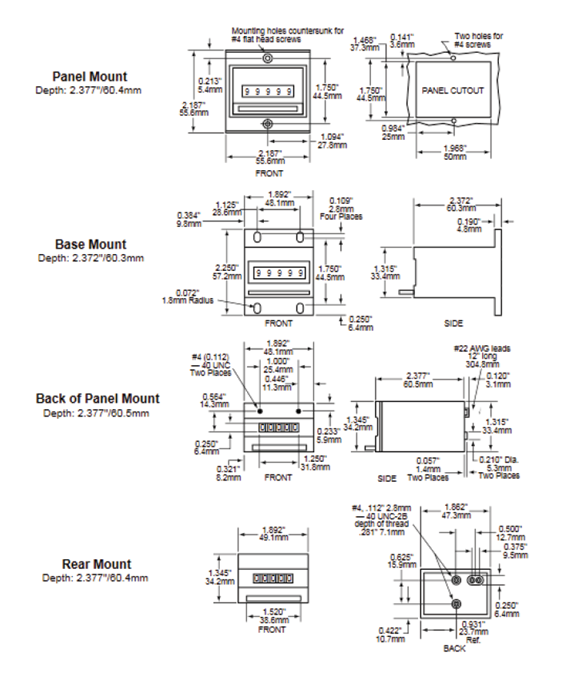

 N/A Base Mount Panel Mount Rear Mount

Operating Temperature

 N/A 32 to 120 ºF0 to 49 ºC

Construction

 N/A Case: Modified Polyphenylene Oxide Clapper: Nickel Plated SAE 1010 Steel Frame: Glass Filled Acetal Resin Shafts, Spring: Stainless Steel Wheels, Pinions, Reset mechanism: Acetal resin

Minimum Count Pulse Timing

 N/A 50 ms on-time and off-time

Alternating Current (AC) Power Consumption

 N/A 5 W

Direct Current (DC) Power Consumption

 N/A 1.5 W

Weight

 N/A 113.4 g4 oz

Features

N/A

  • Broad range of standard AC and DC models
  • Base mount and panel mount styles
  • High contrast white-on-black figures
  • UL recognized; CSA certified
  • Tamper resistant construction
  • Capable of speeds to 600 counts/minute
  • Nonreset and convenient bar-reset models
  • Thermo-stable materials used for long term reliability
