Available in three popular geared ratios, the 7434 Series is typically used with measuring wheels to totalize feet, yards, 1/8 yards, or meters. Its double-ended shaft can carry two measuring wheels for extra grip and stability in contacting measured material. It is commonly used in the textile, wire and cable, paper, rope, and sheet products industries.

Noncorrosive materials are used throughout for years of trouble-free service. Models are provided that add in the clockwise, or counterclockwise direction. Opposite rotation subtracts. All are right-hand drive.

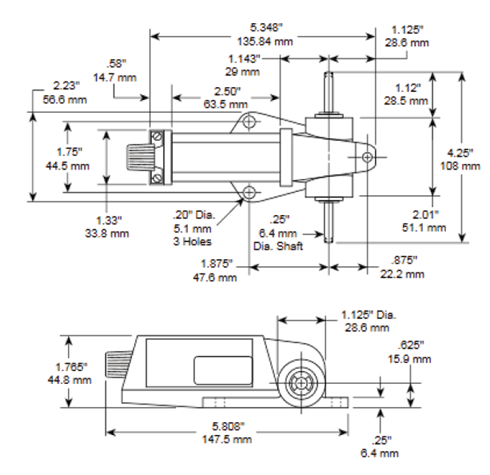

Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A 7434

Type

 N/A Worm Drive Totalizer

Speed

 N/A Continuous 3000 rpm or 3000 cpm, whichever is limiting

Maximum Static Torque

 N/A 2 oz·in

Gearing

 N/A Standard 3:1, 1:1, and 0.375:1

Number of Figures

 N/A 5

Height

 N/A 0.270 in6.9 mm

Width

 N/A 0.185 in4.70 mm

Color of Figures

 N/A White on Black

Reset

 N/A Manual Knob

Lubrication

 N/A Not Required

Mounting

 N/A Base

Construction

 N/A Case: C.A.B. plastic End caps and worm base: Zamak Internal Parts: Acetal resin, A.B.S. plastic or sintered metal Shaft: Stainless steel Worm Drive

Weight

 N/A 1 lb0.454 kg

Additional Information

N/A Other features and configurations are available on special order, such as: shaft variations, special wheel colors and markings, and reset options.

Features

N/A

  • Precision linear measurement of all types of moving materials
  • Double stainless steel shafts accept dual measuring wheels
  • Heavy-duty ball bearings allow shaft speeds to 3000 rpm
  • White-on-black, high contrast figures for easy viewing
  • Clean, modern styled enclosure - corrosion and dust resistant
  • Models with 3:1, 1:1, or 0.375:1 revolution-to-count ratio
  • Counts in yards, 1/8 yards, or feet using standard footage wheel
  • Counts in meters, using 1/3 meter wheel
  • Smooth action rotary knob reset
