The long-time standard in small, flange mount, mechanical totalizers. All external and internal parts are corrosion resistant. Its ruggedness and reliability contribute to trouble free and accurate performance – indoors and out.

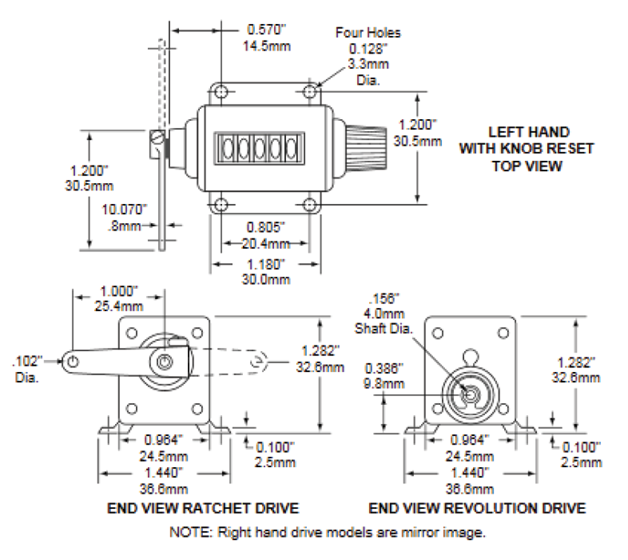

7272 Series is available with left or right hand ratchet drives, while 7287 Series is equipped with revolution drive (adds one count per shaft revolution in either direction).

Where order quantities permit, special variations are possible, such as: mounting options, special levers and couplings, and custom display colors.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A 7272/7287

Type

 N/A High Speed Counter

Number of Figures

 N/A 5

Height

 N/A 0.187 in4.7 mm

Width

 N/A 0.099 in2.5 mm

Color of Figures

 N/A White on Black

Reset

 N/A Manual Knob; Lock-and-Key Reset; Nonreset

Lubrication

 N/A Not Required

Mounting

 N/A Base

Construction

 N/A Case: Glass Filled Nylon Drive Shaft: Stainless Steel Wheels, Reset Knob, Pawls, Yoke, End Caps, Working Parts: Acetal Resin

Weight

 N/A 68.0 g2.4 oz

Features

N/A

  • Accurate, smooth operation and long service life
  • Easy to see 5 figure display - high contrast white-on-black numerals
  • Small overall size with solid base-mount flange
  • Stainless steel drive shaft
  • Tough molded case and internal parts
  • No lubrication required
  • Dust and corrosion resistant
