A popular 6-digit totalizer featuring heavy-duty diecast construction that can really take the severe punishment found in so many industrial applications. Originally designed over 50 years ago, and periodically upgraded to use the latest improved materials, the 1205 Series is the most popular counter in the world, and sets the standard for rugged totalizing counters.

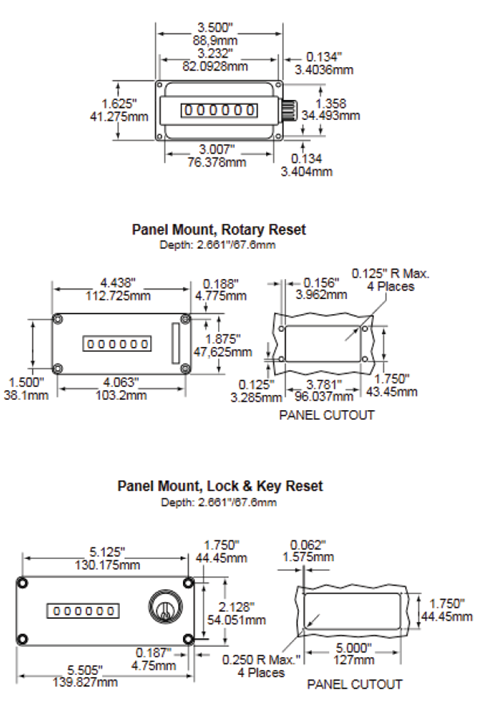

Available in base mount/knob reset, panel mount/rotary reset, and panel mount/lock & key reset models.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A 1205

Type

 N/A Electro-Mechanical Totalizer

Count Speed

 N/A 1000 cpm, 30 ms minimum on-time and off-time

Number of Figures

 N/A 6

Height

 N/A 0.188 in

Width

 N/A 0.156 in

Reset

 N/A Lock and Key Manual Rotary

Alternating Current (AC) Supply Voltage

 N/A 115 V230 V

Note for Alternating Current (AC) Voltage

 N/A Allowable variation is ±10 volt

Nominal Power Consumption

 N/A 6 W

Connections

 N/A 7 ft 5 in. (190 mm), #22 AWG Leads from bottom

Construction

 N/A Bobbin: Nylon Frame and Covers: Zamak Wheels and Pinions: Plastic

Additional Information

N/A The 1205 Series is tough. Wide temperature variations don’t upset its thermo-stable wheels and pinions. Severe voltage transients will not damage its direct AC coil, so external surge protection is not required. Duty cycles that result in continuous coil energization won’t degrade its life or performance.

Features

N/A

  • Designed for industrial duty
  • Corrosion and shock resistant
  • Extremely stable over temperature and voltage
  • Easy-to-view black on white characters
  • Count speed to 1000 per minute
  • Non-rectified design - precision AC coil
  • Long service life in harsh environments
  • Lock & key reset model protects counted totals
