Technical Specs

Brands

 N/A

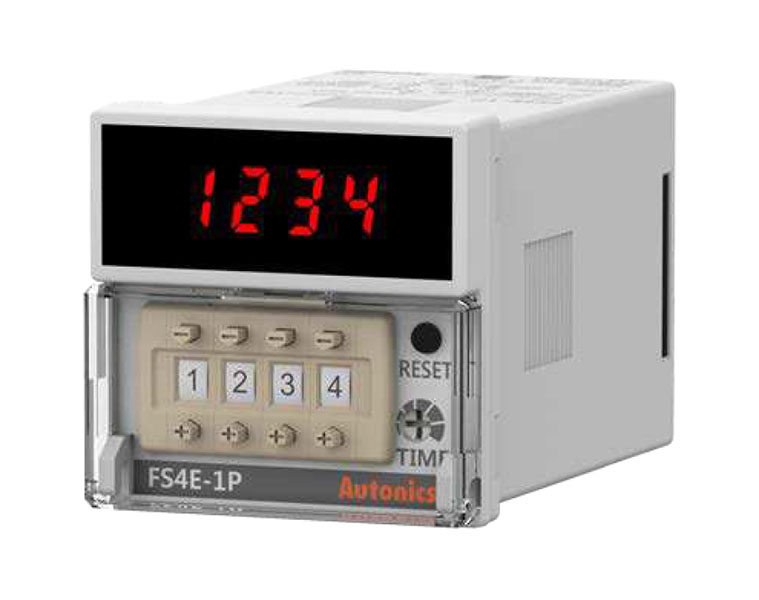

Autonics

Model

 N/A FSE

Type

 N/A Timer

Return Time

 N/A ≤ 500 ms

Time Operation

 N/A Power ON Start

One-Shot Output Time

 N/A 0.05 to 5 sec

Permissible Voltage Range

 N/A 90 to 110 % of rated voltage

Memory Retention

 N/A ≈ 10 years (Non-volatile Semiconductor Memory type)

Insulation Resistance

 N/A ≥ 100 MΩ (500 VDC, Megger)

Vibration

 N/A 0.75 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 1 hour

Shock

 N/A 300 m/s² (≈ 30 G) in each X, Y, Z direction for 3 times

Ambient Temperature

 N/A -10 to 55 ºC, Storage: -25 to 65 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • Wide range of the time selection (0.01 sec to 9999.9 hour)
  • Selectable voltage input (PNP) method or no-voltage input (NPN) method
  • Dot for Decimal Point / Hour. Min. Sec. by RESET key
  • Wide range of power supply: 100 - 240 VAC~50 / 60 Hz, 24 VAC~50 / 60 Hz, 24 - 48 VDC, universal
  • Memory protection for 10 years (using non-volatile semiconductor)
  • Built-in Microprocessor
