Technical Specs

Brands

 N/A
Autonics

Model

 N/A ATS8P

Type

 N/A Analog Timer

Function

 N/A Power-Off Delay

Return Time

 N/A ≤ 100 ms

Control Output

 N/A Relay

Contact Type

 N/A Time Limit DPDT (2c)

Contact Capacity

 N/A 250 VAC ~ 3 A, 30 VDC, 3 A Resistive Load

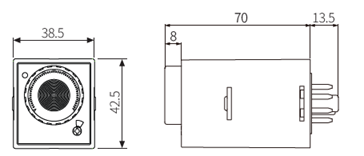

Width

 N/A 38 mm

Height

 N/A 42 mm

Certification

 N/A

Applications

N/A Protection circuit when momentary power failure and start it again

Features

N/A

  • Control time range (ATS8P-S: 0.1 to 10 sec, ATS8P-M: 0.1 to 10 min)
  • Direct reading for time setting and time range with easy adjustment
  • Power supply: 100-120 VAC ~ 50/60 Hz, 200-240 VAC ~ 50/60 Hz, 24 VAC ~ 50/60 Hz, 24 VDC, Universal
  • Close and DIN rail mounting with the dedicated socket (PS-M8) width 41 mm
  • Easy mounting and installation / maintenance with the dedicated bracket for DIN 48 × 48 mm
