Technical Specs

Brands

 N/A
Autonics

Model

 N/A ATN

Type

 N/A Analog Timer

Function

 N/A Multi-Function Timer

Return Time

 N/A ≤ 100 ms

Control Output

 N/A Relay

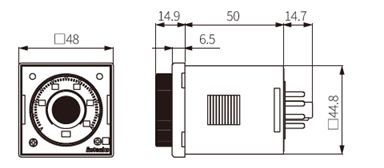

Width

 N/A 48 mm

Height

 N/A 48 mm

Certification

 N/A

Features

N/A

  • Wide range of power supply: 100 - 240 VAC ~ 50 / 60 Hz, 24 - 240 VD / 24 VAC ~ 50 / 60 Hz, 24 VDC, 12 VDC
  • Various output operation (6 operation modes)
  • Multi time range (16 types of time range)
  • Wide control time (0.05 sec to 100 hour)
  • Easy setting of time, time range, output operation mode
  • Easy to check output status by indicator
  • Do not connect two or more timers with only one input contact or transistor simultaneously.
  • After turning off the power, change the time range, etc.
  • Keep away from high voltage lines or power lines to prevent inductive noise. In case installing power line and input signal line closely, use line filter or varistor at power line and shielded wire at input signal line.
    Do not use near the equipment which generates strong magnetic force or high frequency noise.
  • This unit may be used in the following environments.
    • Indoors (in the environment condition rated in 'Specifications')
    • Altitude max. 2,000 m
    • Pollution degree 2
    • Installation category II
