Technical Specs

Brands

 N/A
Autonics

Model

 N/A AT8PSN/AT8PMN

Type

 N/A Analog Timer

Function

 N/A Power-Off Start

Time Operation

 N/A Power-Off Delay

Control Output

 N/A Relay

Contact Type

 N/A Time Limit DPDT (2c)

Contact Capacity

 N/A 250 VAC ~ 3 A, 30 VDC, 3 A Resistive Load

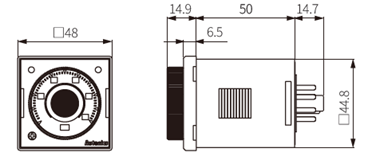

Width

 N/A 48 mm

Height

 N/A 48 mm

Certification

 N/A

Applications

N/A Protect circuit when momentary power failure and start it again

Features

N/A

  • Time setting range (AT8PSN: 0.05 to 10 sec, AT8PMN: 0.05 to 10 min)
  • Simple time setup and direct read of time range
  • Power supply : 100 - 120 VAC ~ 50 / 60 Hz / 200 - 240 VAC ~ 50 / 60 Hz / 100/110 VDC / 24 VAC ~ 50 / 60 Hz, 24 VDC
