Unit of Measure

Technical Specs

Brands

N/A

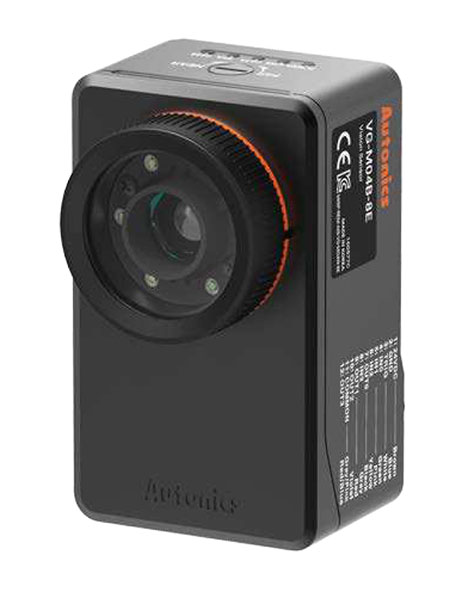

Autonics

Model

N/A VG

Type

N/A Sensor

Resolution

N/A 752 x 480 pixel
Image Snap Camera Frame Per Second1 N/A ≤ 60 fps

Shutter

N/A Global Shutter

Exposure Time

N/A 20 to 50,000 µs
Light Color2 N/A Blue Green Red White

Current Consumption

N/A 1 A

Vibration

N/A 1.5 mm double amplitude at frequency 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

N/A 300 m/s² (≈ 30 G) in each X, Y, Z direction for 3 times

Ambient Temperature

N/A 0 to 45 ºC, Storage: -20 to 70 ºC (No Freezing or Condensation)

Ambient Humidity

N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

N/A

Features

N/A

  • Vision sensors with integrated LED lighting
  • Global shutter method for accurate image capturing with minimal motion blur
  • Enhanced optical performance with light interference prevention technology
  • Tight lens cover attachment allows application in environments with dust or shock
  • Various inspection functions
  • Inspection simulator function
  • Set up to 32 separate work group (64 inspection points per work group)
  • Save data to FTP servers
  • Free vision sensor software included (Vision Master) : inspection simulator function, manage parameters and work group, inspection results monitoring, send data to FTP, multilingual support, etc.
  • IP67 protection structure (IEC standard)

  • 1 The number of camera frames per second can be different by image setting or inspection item.
  • 2 Available to buy separately and replace.
