Technical Specs

Brands

 N/A
Autonics

Model

 N/A BWPK

Type

 N/A Sensor

Sensing Method

 N/A Through-Beam

Light Source

 N/A Infrared Light-Emitting Diode (LED) (850 nm modulated light)

Sensing Target

 N/A Opaque Materials

Response Time

 N/A ≤ 30 ms

Operation Mode

 N/A Light ON / Dark ON (switch)

Protection Circuit

 N/A Reverse power protection circuit, output short overcurrent protection circuit

Insulation Resistance

 N/A ≥ 20 MΩ (500 VDC, Megger)

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC ~ 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times

Certification

 N/A

Features

N/A

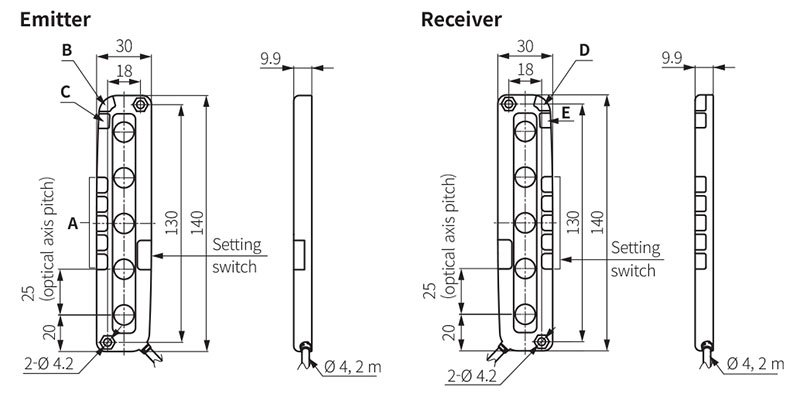

  • Flat and compact size : W 30 × H 140 × D 9.9 mm
  • High strength PC / ABS plastic body
  • Sensing distance switch (long / short mode switch)
  • Mutual interference prevention function (frequency switching), Picking indicators on emitter and receiver, Light ON/Dark ON operation mode switch
  • IP40 protection structure (IEC standard)
