Technical Specs

Brands

 N/A
Autonics

Model

 N/A BWP

Type

 N/A Sensor

Sensing Method

 N/A Through-Beam

Light Source

 N/A Infrared Light-Emitting Diode (LED) (850 nm modulated light)

Sensing Distance

 N/A 0.1 to 5.0 m

Sensing Target

 N/A Opaque Materials

Operation Mode

 N/A Light ON / Dark ON (switch)

Protection Circuit

 N/A Reverse power protection circuit, output short overcurrent protection circuit

Insulation Resistance

 N/A ≥ 20 MΩ (500 VDC, Megger)

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC ~ 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times

Certification

 N/A

Features

N/A

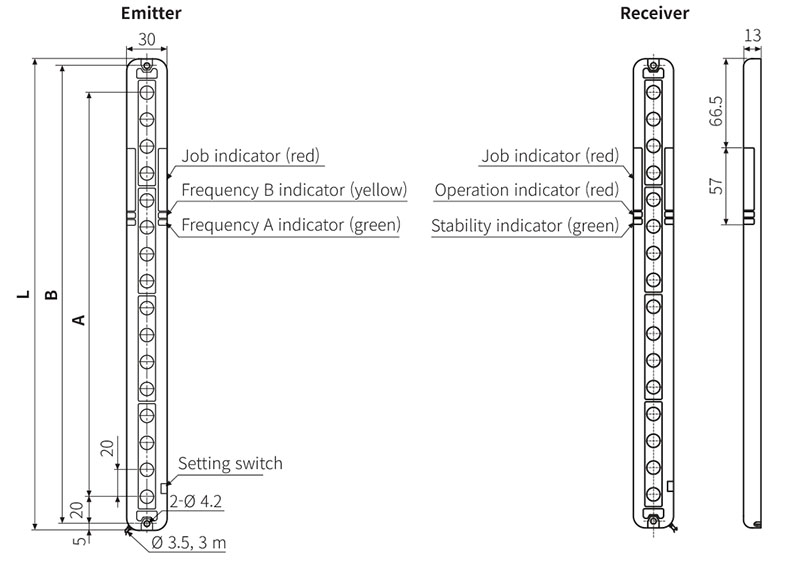

  • Flat body (13 mm) area sensors with Fresnel lens
  • High strength PC / ABS plastic body
  • High-speed response time under 7ms
  • 4 configurations (optical axis : 8 to 20, detection area : 140 to 380 mm)
  • Operation test (emitter stop) function, mutual interference prevention function, Job indicator ON/FLASHING switch, Light ON/Dark ON operation mode switch
  • Bright LED indicators on emitter and receiver
  • IP40 protection structure (IEC standard)
