Technical Specs

Brands

 N/A
Autonics

Model

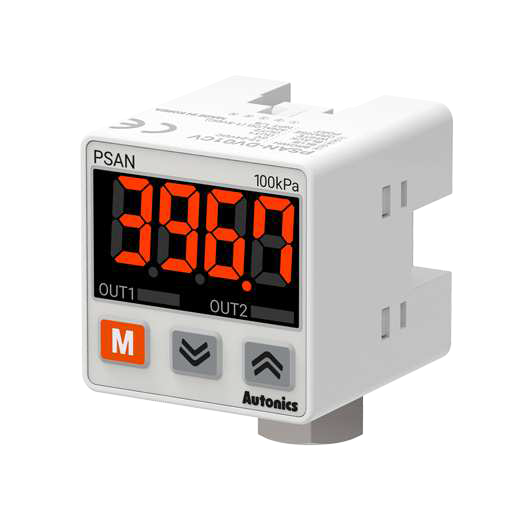

 N/A PSAN

Type

 N/A Pressure Sensor

Power Supply

 N/A 12 - 24 VDC (ripple P-P: ≤ 10%)

Allowable Voltage Range

 N/A 90 to 110% of Rated Voltage

Current Consumption

 N/A ≤ 50 mA

Control Output

 N/A Negative-Positive-Negative (NPN) open collector output Positive-Negative-Positive (PNP) open collector output model

Direct Current (DC) Load Voltage

 N/A ≤ 30 V

Load Current

 N/A ≤ 100 mA

Residual Voltage

 N/A NPN: ≤ 1 VDC, PNP: ≤ 2 VDC

Hysteresis

 N/A According to output operation mode

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Ambient Temperature

 N/A -10 to 50 ºC, Storage: -20 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 30 to 80% RH, Storage: 30 to 80% RH (No Freezing or Condensation)

Certification

 N/A

Features

N/A

  • Pressure measurement of any gas, liquid or oil (except substances which may corrode stainless steel 304/316L)
  • Auto shift function: with change in the original pressure, the external input adjusts the determined level to match the change in pressure (only available in models with auto shift/hold function)
  • Hold function: hold current display value or control output
  • Forced output control mode for device testing and maintenance
  • One-touch connector type for easy wiring and maintenance
  • Zero-point adjustment function, peak value monitoring function, chattering prevention function
