Technical Specs

Brands

 N/A
Autonics

Model

 N/A BTS

Type

 N/A Photoelectric Sensor

Operation Mode

 N/A Light ON Mode / Dark ON Mode Model

Response Time

 N/A ≤ 1 ms

Light Source

 N/A Red

Peak Emission Wavelength

 N/A 650 nm

Indicator

 N/A Operation Indicator (Red) Stability Indicator (Green)

Insulation Resistance

 N/A ≥ 20 MΩ (500 VDC, Megger)

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC ~ 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times

Protection Circuit

 N/A Reverse power protection circuit, output short overcurrent protection circuit

Certification

 N/A

Features

N/A

  • W 7.2 mm Photoelectric Sensors

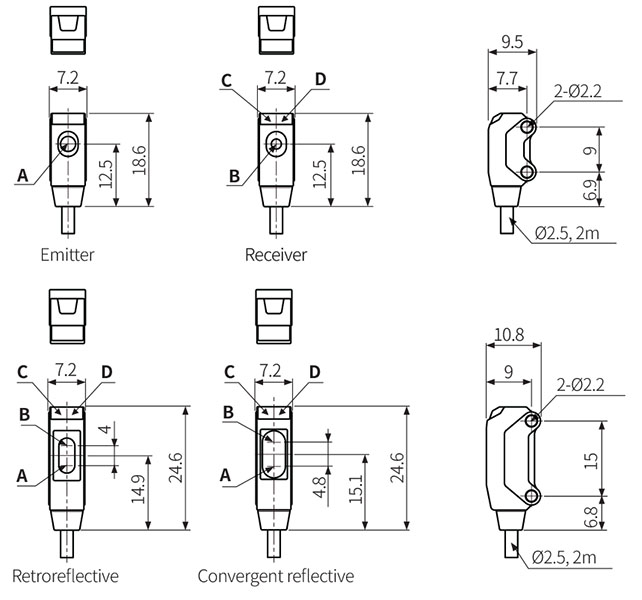

  • W 7.2 x H 18.6 x L 9.5 mm (Through-beam type)
  • W 7.2 x H 24.6 x L 10.8 mm (Retroreflective, convergent reflective type)
  • Detection methods and minimum target size
  • Through-beam type (BTS1M): Ø 2 mm
  • Retroreflective type (BTS200): Ø 2 mm (sensing distance: 100 mm)
  • Convergent reflective type (BTS15/BTS30): Ø 0.15 mm (sensing distance: 10 mm)
  • Maximum sensing distance: 1 m (Through-beam type)
  • Operation indicator (red) and stability indicator (green) show operation status
  • Stainless steel (SUS304) mounting brackets
  • IP67 protection rating (IEC standard)
