Technical Specs

Brands

 N/A
Autonics

Model

 N/A BJ

Type

 N/A Photoelectric Sensor

Direct Current (DC) Power Supply Voltage

 N/A 12 to 24 V

Output

 N/A Solid State (Transistor)

Connection

 N/A Cable Type

Insulation Resistance

 N/A ≥ 20 MΩ (500 VDC, Megger)

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC ~ 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times

Protection Circuit

 N/A Reverse power protection circuit, output short over current protection circuit

Ambient Temperature

 N/A -25 to 55 ºC, Storage: -40 to 70 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

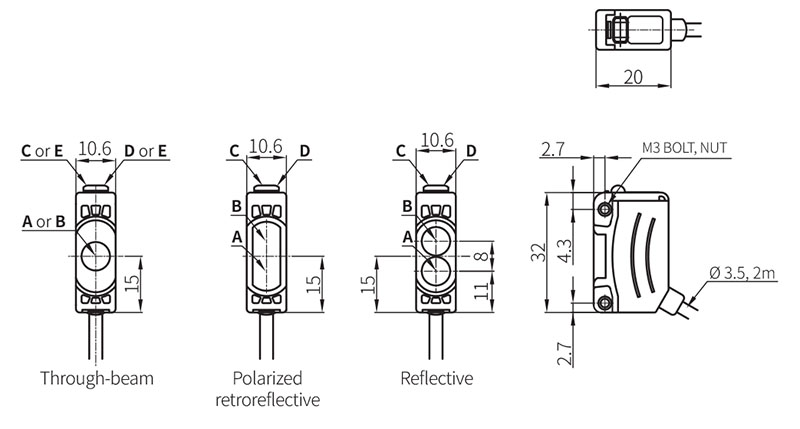

  • Compact size: W 10.6 x H 32 x L 20 mm
  • IP65 protection rating (IEC standard)
  • Adjuster for selecting Light ON/Dark ON mode
  • Built-in sensitivity adjustment adjuster (except BJG30-DDT)
  • Reverse power protection circuit, output short overcurrent protection circuit
  • Mutual interference prevention function (except through-beam and BGS reflective type)
  • Excellent noise immunity and minimal influence from ambient light
