Technical Specs

Brands

 N/A
Autonics

Model

 N/A BH

Type

 N/A Photoelectric Sensor

Operation Mode

 N/A Light ON Mode - Dark ON Mode Selectable (Adjuster)

Response Time

 N/A ≤ 1 ms

Connection

 N/A Cable Type

Indicator

 N/A Operation Indicator (Red) Power Indicator (Green) Stability Indicator (Green)

Insulation Resistance

 N/A ≥ 20 MΩ (500 VDC, Megger)

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC ~ 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times

Protection Circuit

 N/A Reverse power protection circuit, output short over current protection circuit

Ambient Temperature

 N/A -25 to 55 ºC, Storage: -40 to 70 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • Easy front (M18 nut) and side (M3 bolt/nut) installation
  • NPN open collector/ PNP open collector simultaneous output
  • Sensing distance: Through-beam type 20 m / Polarized retro reflective type 4 m/Diffuse reflective type 1 m, 300 mm

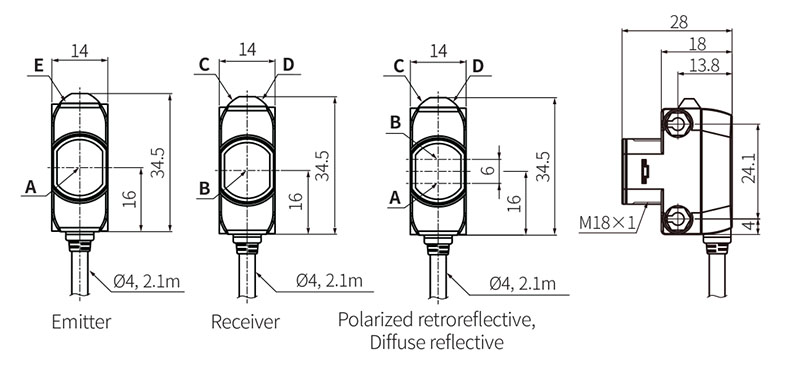

  • Small size: W 14 X H 34.5 X L 28 mm
  • M.S.R. (Mirror Surface Rejection) function prevents malfunction from reflective objects such as metals or mirrors (polarized retro reflective type)
  • Built-in sensitivity adjuster
  • Light ON/Dark ON selectable by switch
  • Operation indicator (red), stability indicator (green)
  • Reverse power protection circuit, output short overcurrent protection circuit
  • Mutual interference prevention function (except through-beam type)
  • IP67 protection rating (IEC standard)
