Technical Specs
Brands |
N/A
 Autonics |
Model |

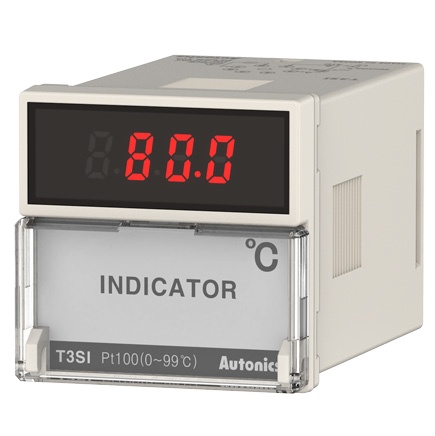

N/A T3/T4-TI |
Type |
N/A Indicator |
Permissible Voltage Range |
N/A 90 to 110 % of rated voltage |
Display Type |
N/A 7 Segment (Red), Light-Emitting Diode (LED) Type |
Dielectric Strength |
N/A Between the charging part and the case: 2,000 VAC~ 50/60 Hz for 1 minute |
Vibration |
N/A 0.75 mm amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
Noise Immunity |
N/A ± 2 kV square shaped noise (pulse width 1 µs) by noise simulator R-phase, S-phase |
Ambient Temperature |
N/A -10 to 50 ºC, Storage: -20 to 60 ºC (No Freezing or Condensation) |
Ambient Humidity |
N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation) |
Certification |
N/A
 |
