Technical Specs

Brands

 N/A
Autonics

Model

 N/A TPS30

Type

 N/A Pressure Transmitter

Dielectric Strength

 N/A Between the charging part and the case: 500 VAC ~ 50/60 Hz for 1 minute

Ambient Humidity

 N/A 35 to 85% RH, storage : 35 to 85% RH (No freezing or Condensation)

Pressure Type

 N/A Absolute Gauge Sealed Gauge

Response Time

 N/A ≤ 1 ms

Tightening Torque

 N/A ≤ 10 N·m

Insulation Resistance

 N/A ≥ 100 MΩ (500 VDC, Megger)

Certification

 N/A

Features

N/A

  • Robust build allows high or low pressure measurement in high and low temperature environments
    • High pressure (0 to 60 MPa/0 to 600 bar), low pressure (0 to 2 MPa/0 to 20bar)
    • Sealed gauge pressure (-0.1 to 2 MPa / -1 to 20 bar), absolute pressure (0 to 2 MPa / 0 to 20 bar), gauge pressure (0 to 60 MPa/0 to 600 bar)
    • Temperature range (-40 to 125 ºC) (may vary by model)
  • Applicable in diverse settings including packaging machines, heavy machinery, factories, and shipbuilding
  • Pressure measurement of any gas, liquid, or oil
  • 316L, 630 stainless steel body for high corrosion resistance (except head component of head types)
  • Compact size allows easy installation in tight or limited spaces
  • 1 ms high-speed response rate
  • Analog output: current (DC 4-20 mA), voltage (1-5 VDC)
  • Built-in reverse polarity protection circuit

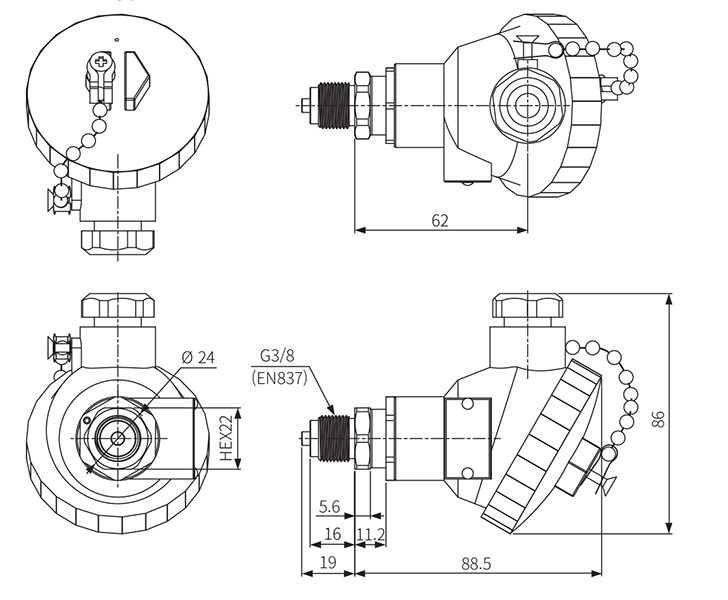

  • Various connector types: cable type, DIN43650-A connector type, DT04-3P connector type, M12 connector type, head type
  • Available thread sizes: G3/8, G1/4, R1/2
  • IP67 protection structure (IEC standard) (DIN43650-A connector type: IP65)
