Technical Specs
Brands |
N/A
 Autonics |
Model |
N/A E100H |
Type |
N/A Encoders |

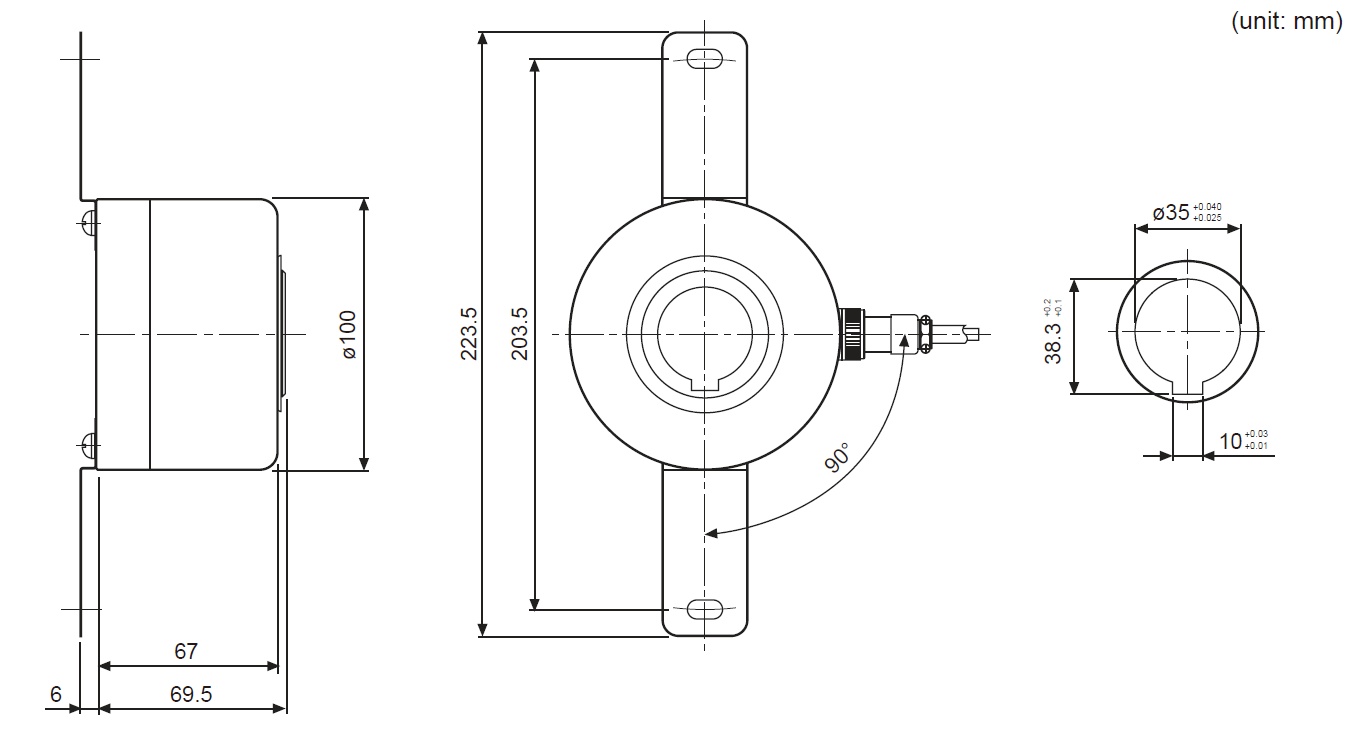

Housing Diameter |
N/A 100 mm |
Resolution |
N/A 1,024 pulses/rev10000 pulses/rev512 pulses/rev |
Maximum Response Frequency |
N/A 300 kHz |
Maximum Allowable Revolution |
N/A 3,600 rpm |
Maximum Starting Torque |
N/A 0.03 N·m300 gf·cm |
Maximum Moment of Inertia |
N/A 8 x 10-5 kg·m²800 g/cm² |
Allowable Radial Shaft Load |
N/A 5 kgf |
Allowable Thrust Shaft Load |
N/A 2.5 kgf |
Dielectric Strength |
N/A 750 VAC 50/60Hz for 1 minute (Between all terminals and case) |
Vibration |
N/A 1.5 mm amplitude or 300 m/s2 at frequency of 10 to 55 Hz(for 1 min.) in each of X, Y, Z directions for 2 hours |
Ambient Temperature |
N/A -10 to 70 ºC, Storage : -25 to 85 ºC |
Ambient Humidity |
N/A 35 to 85% RH, Storage : 35 to 90% RH |
Certification |
N/A
 |
