Technical Specs
Brands |
N/A
 Autonics |
Model |
N/A D1AA |
Type |
N/A Display Unit |
Direct Current (DC) Power Supply Voltage |
N/A 12 to 24 V |
Permissible Voltage Range |
N/A 90 to 110 % of rated voltage |
Current Consumption |
N/A ≤ 32 mA |

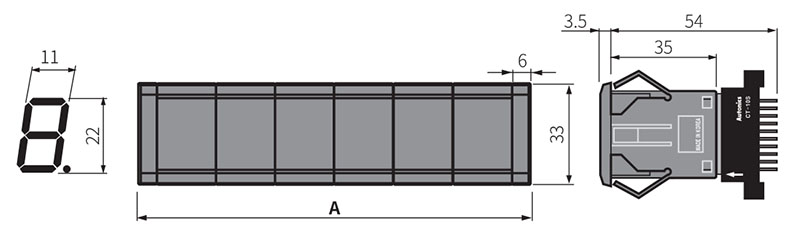

Width |
N/A 11 mm |
Height |
N/A 22 mm |
Display Character |
N/A 61 characters and symbols (0 to 9, A to Z, 24 symbols, decimal point) |
Input Resistance |
N/A 20 kΩ |
Maximum Clock |
N/A ≤ 3 kHz |
Output |
N/A Data Output (Serial Input) |
Input Logic |
N/A Positive logic (PNP), negative logic (NPN) selectable (by inner soldering) |
Noise Immunity |
N/A ± 300 V the square wave noise (pulse width: 1 µs) by the noise simulator |
Ambient Temperature |
N/A 0 to 60 ºC, Storage: -10 to 85 ºC (No Freezing or Condensation) |
Ambient Humidity |
N/A 35 to 85% RH (No Freezing or Condensation) |
Certification |
N/A
 |
