Economical small encoder, well suited to use in woodworking machines, miniature motors, graphical machinery and table-top robots, because it can have up to 3600 lines and is designed for high performance.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A RI41

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 10 100 1000 1024 1250 128 144 1500 20 200 2000 2048 25 250 2500 256 28 288 300 3000 32 360 3600 400 5 50 500 512 60 600 72 720 900

Note for Number of Pulses

 N/A Other number of pulses on request.

Certification

 N/A

Mechanical

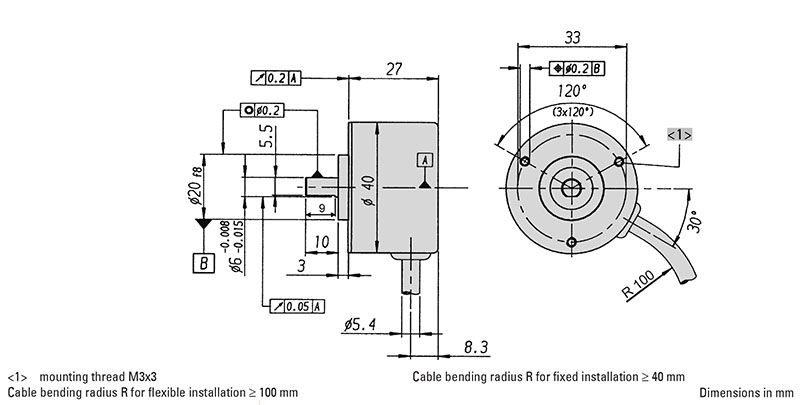

Housing Diameter

 N/A 40 mm

Shaft Diameter (Solid Shaft)

 N/A 6 mm

Flange (Mounting of Housing)

 N/A Pilot Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP40)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP50)

Axial Shaft Load

 N/A 5 N

Radial Shaft Load

 N/A 10 N

Maximum Speed

 N/A 10,000 rpm

Torque

 N/A ≤ 0.2 N·cm

Applications

N/A Wood working machines, FHP motors, graphic machines, table robots

Features

N/A

  • Replacement for type RIM
  • Economical miniature encoder
  • Up to 14,400 steps with 3,600 pulses
  • High mechanical efficiency
