Small rotary encoders for industrial applications featuring up to 3600 lines and high dependability. Thanks to its high ingress protection rating of IP64, this encoder is suitable for use in e.g. machine tools, robots, special-purpose machinery, and high-speed spoolers.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A RI36-O

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 10 100 1000 1024 1250 128 144 1500 20 200 2000 2048 25 250 2500 256 28 288 300 3000 32 360 3600 400 5 50 500 512 60 600 72 720 900

Note for Number of Pulses

 N/A Other number of pulses on request.

Certification

 N/A

Mechanical

Housing Diameter

 N/A 36 mm

Shaft Diameter (Solid Shaft)

 N/A 6 mm6.35 mm

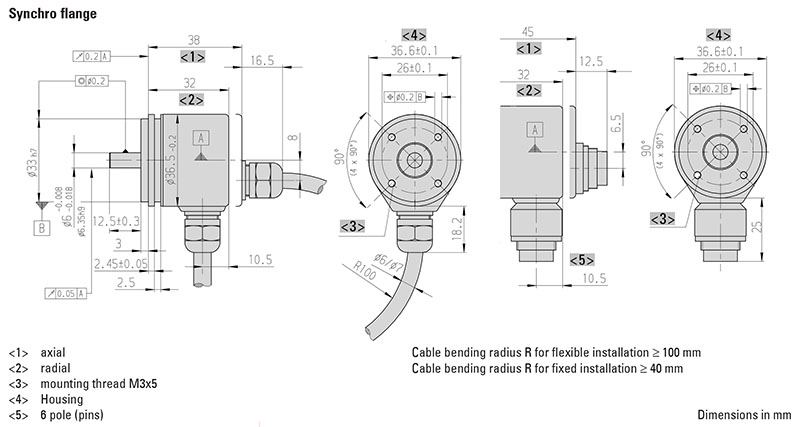

Flange (Mounting of Housing)

 N/A Pilot Flange Synchro Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP64)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP64)

Axial Shaft Load

 N/A 5 N

Radial Shaft Load

 N/A 10 N

Maximum Speed

 N/A 10,000 rpm

Torque

 N/A ≤ 0.3 N·cm

Approximate Moment of Inertia

 N/A 2.8 g/cm²

Housing Material

 N/A Aluminum

Applications

N/A CNC axles, machine tools, robots, special purpose machines, high-speed winding machines

Features

N/A

  • Miniature industry standard encoder for high numbers of pulses
  • High reliability
