Small rotary encoders for industrial applications featuring low current rating and high resistance to interference. Flexible connection options enable cable lengths of up to 100 m. Thanks to its high ingress protection rating of IP64, this encoder is suitable for use in e.g. CNC machines, manipulator attachments, motors, medical technology and textile machines.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A RI30-O

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 10 100 1000 1024 120 1250 1500 20 200 25 250 256 288 30 300 360 400 5 50 500 512 60 600 720

Note for Number of Pulses

 N/A Other number of pulses on request
Preferably available versions are printed in bold type.

Cable Length

 N/A Up to 100 m

Certification

 N/A

Mechanical

Housing Diameter

 N/A 30 mm

Shaft Diameter (Solid Shaft)

 N/A 5 mm

Flange (Mounting of Housing)

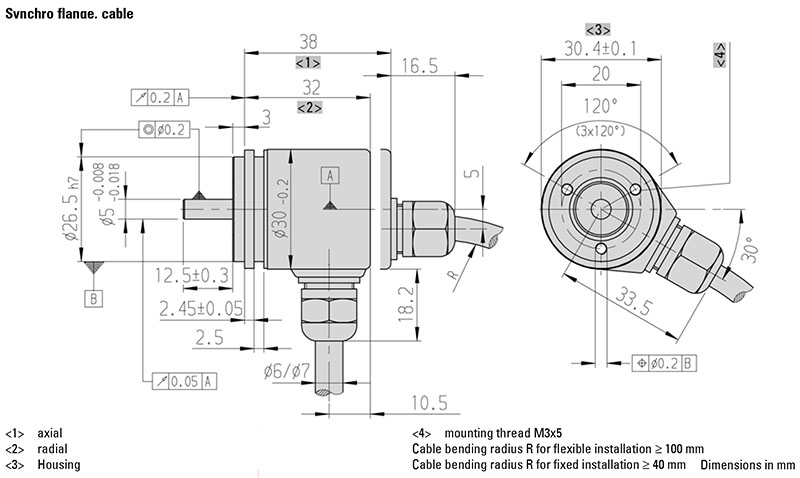

 N/A Pilot Flange Synchro Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP64)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP64)

Axial Shaft Load

 N/A 5 N

Radial Shaft Load

 N/A 10 N

Maximum Speed

 N/A 10,000 rpm

Typical Starting Torque

 N/A ≤ 1 N·cm

Approximate Moment of Inertia

 N/A 0.8 g/cm²

Housing Material

 N/A Aluminum

Applications

N/A CNC machines, manipulators, motors, medical technology, textile machines

Features

N/A

  • Miniature encoder for industrial use
  • Low current consumption
  • High noise interference immunity
  • Suitable for high pulse frequencies
  • High protection class
