NorthStar™'s HSD38 Extreme Duty Industrial Hollow shaft Encoder accepts up to 1" (25,4 mm) diameter shafts and operates reliably from -40 to +100ºC. Its Hard Anodized finish enclosure exceeds IP66/IP67 and NEMA 6 enclosure requirements.

This robust encoder features a double-sealed housing that allows application where regulatory washdown and high pressure steam or caustic chemicals are present. Utilization of an advanced Opto ASIC with innovative packaging techniques enables the encoder to operate in high shock and vibration environments.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A HSD38

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 0015 0032 0100 0200 0240 0250 0500 0512 0600 1000 1024 1200 2000 2048 2500 4000 5000

Certification

 N/A

Mechanical

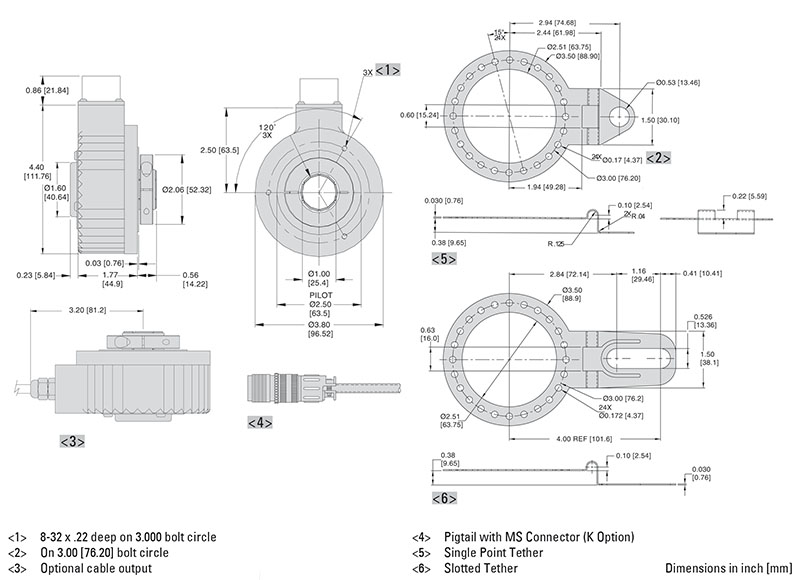

Housing Diameter

 N/A 96.52 mm

Shaft Diameter (Hub Shaft)

 N/A 12 mm15 mm16 mm1/2 in5/8 in3/4 in0.875 in

Flange (Mounting of Housing)

 N/A Tether

Mounting of Shaft

 N/A Front Clamping Ring

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP66) Ingress Protection (IP67) National Electrical Manufacturers Association (NEMA 4X) National Electrical Manufacturers Association (NEMA 6)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP66) Ingress Protection (IP67) National Electrical Manufacturers Association (NEMA 4X) National Electrical Manufacturers Association (NEMA 6)

Typical Starting Torque

 N/A 2.8 N·cm

Housing Material

 N/A Hard Anodized Aluminum

Applications

N/A The HSD38 extreme duty encoder features simple installation on motor or machine shafts. It is often mounted on the back of motors where encoder feedback is needed in harsh environment applications. It is ideal for use in environments that demand heavy washdown protection.

  • Converting Machinery
  • Material Handling
  • Packaging Equipment
  • Processing Equipment
Industries

Chemical, Food & Beverage, Paper, Steel and any other where a precise encoder is needed to operate in harsh environments.
