There are some encoder applications that are just demanding. Incredibly challenging. Among these are applications where the encoder has to be explosion-proof due to the dangerous atmosphere in which it operates. Or those that involve continual exposure to salt water. Or where it experiences huge shock loads of over 100 G. Or shaft loads of hundreds of Newtons. But the MOST demanding applications are those where the encoder must meet ALL these requirements. And that is exactly where the Hengstler AX65 comes in.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A AX 65 - SSI

Type

 N/A Absolute Encoder

Certification

 N/A

Mechanical

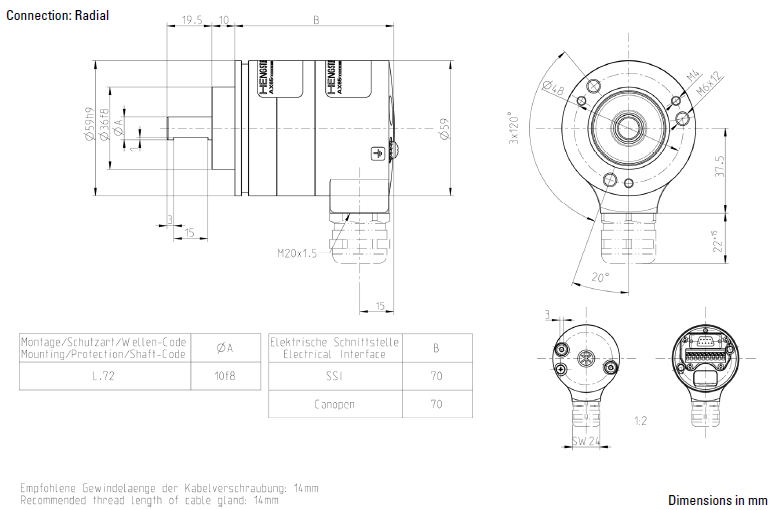

Housing Diameter

 N/A 59 mm

Shaft Diameter (Solid Shaft)

 N/A 10 mm

Flange (Mounting of Housing)

 N/A Synchro Clamping Flange

Protection Class Shaft Input (EN 60529/A1:2000-02)

 N/A Ingress Protection (IP66) Ingress Protection (IP67)

Protection Class Housing (EN 60529/A1:2000-02)

 N/A Ingress Protection (IP66) Ingress Protection (IP67)

Maximum Axial Shaft Load

 N/A 300 N

Maximum Radial Shaft Load

 N/A 300 N

Nominal Speed

 N/A 1,500 rpm

Typical Starting Torque

 N/A ≤ 4.5 N·cm

Applications

N/A Winch, enamelling production line, petro chemistry, bottling machines, mixers, silo works, mills, cranes, drilling equipment

Features

N/A

  • Extreme Robust Explosionproof absolute Encoder
  • ATEX and IECEx certification for Mining, Gas and Dust
  • Extreme shock and vibration resistant: 200 g shock; 30 g vibration
  • Most compact design of its class: 70 mm mounting depth
  • Different terminal boxes with cage clamp terminals
  • Easy and fast field installation
  • Extreme corrosion resistance: high grade stainless steel housing (1.4404)

Additional Information

N/A Certified explosion-proof, built with marine-grade stainless steel, with a shock rating of 200 G and shaft load of 300 N, the AX65 is one tough encoder. The most compact absolute encoder in its class, its shallow depth and body diameter of only 59 mm allow it to fit where other explosion-proof encoders can’t. The explosion-proof certification makes it ideal for offshore oil platforms, mines, chemical plants, etc., as does the marine grade stainless steel of which it’s built. The shaft load rating eliminates the need for load modules, reducing costs. The AX65 can be installed quickly and easily due to its flexible, quick-connect terminal system. Rounding out the AX65 is the choice of SSI or CANopen interface, which can save wiring costs by allowing a ring network configuration.
