The robust absolute shaft encoder line ACURO-XR is available in explosion proof design with explosion proof enclosure "Ex d" under AX 65.

It has been assured with the EC-TYPE-Examination Certificate IBExU10ATEX1172 X that the AX65 meets the requirements of safety and health according to EN IEC 60079-0:2018; EN 60079- 1:2014 and EN 60079-31:2014.

Additionally the encoder is certified according the IECEx standards IEC 60079-0:2017, Edition 7.0; IEC 60079-1:2014, 7th Edition and IEC 60079-31:2013, 2nd Edition. Assured according IECEx IBE 12.0017X certification.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A AX 65 - CANopen

Type

 N/A Heavy-Duty Absolute Encoder

Certification

 N/A

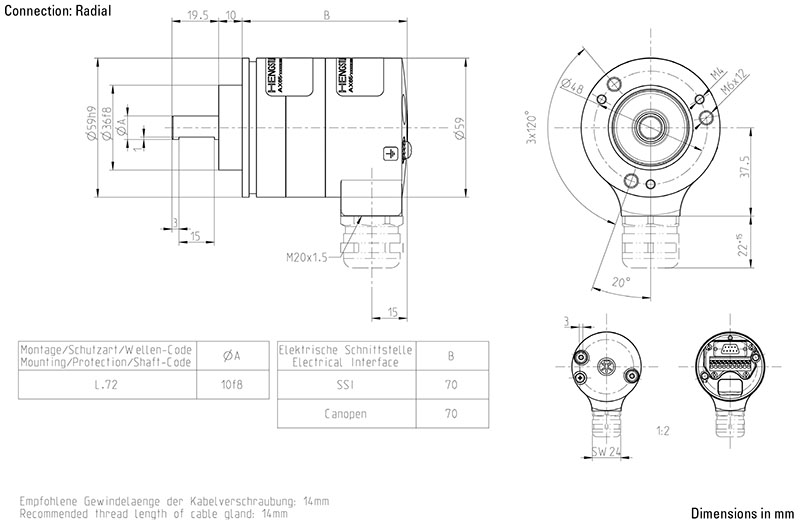

Mechanical

Housing Diameter

 N/A 59 mm

Shaft Diameter (Solid Shaft)

 N/A 10 mm

Mounting Depth

 N/A 70 mm

Flange (Mounting of Housing)

 N/A Synchro Clamping Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP66) Ingress Protection (IP67)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP66) Ingress Protection (IP67)

Maximum Axial Shaft Load

 N/A 300 N

Maximum Radial Shaft Load

 N/A 300 N

Nominal Speed

 N/A 1,500 rpm

Typical Starting Torque

 N/A ≤ 4.5 N·cm

Applications

N/A Winch, enamelling production line, petro chemistry, bottling machines, mixers, silo works, mills, cranes, drilling equipment

Features

N/A

  • Extreme Robust Explosionproof absolute Multiturn Encoder
  • ATEX and IECEx certification for Mining, Gas and Dust
  • Extreme shock and vibration resistant: 200 g shock; 30 g vibration
  • Most compact design of its class: 70 mm mounting depth; 59 mm diameter
  • Different terminal boxes with cage clamp terminals
  • Easy and fast field installation: access to DIP switches
  • Extreme corrosion resistance: high grade stainless steel housing (1.4404)
