Besides the robust magnetic Sensor technology the AR60 offers a wear-free electronic Multiturn which works without the need of a battery.

Single turn resolution is 12 bit, i.e. one revolution (360°) is resolved into 4096 measuring steps. Standard multi turn resolution is 16 Bit for CANopen interface.

The AR60 is electrically compatible with standard industrial drives. Available interfaces are SSI, CANopen and Analog (0 ... 10 V or 4 ... 20 mA).
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A AR 60

Type

 N/A Absolute Encoder

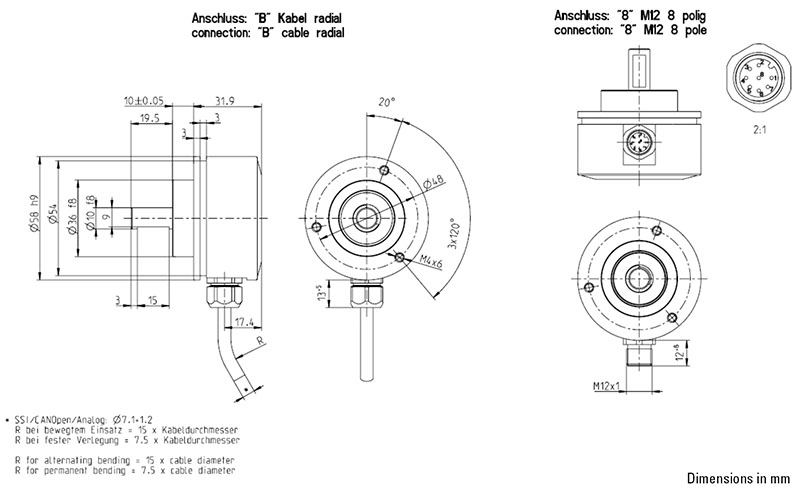

Mechanical

Housing Diameter

 N/A 58 mm

Shaft Diameter (Solid Shaft)

 N/A 10 mm

Mounting Depth

 N/A 32 mm

Flange (Mounting of Housing)

 N/A Synchro Clamping Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP64)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP67)

Maximum Axial Shaft Load

 N/A 40 N

Maximum Radial Shaft Load

 N/A 110 N

Maximum Speed (Continuous)

 N/A 5,000 rpm

Maximum Speed (Short Term)

 N/A 6,000 rpm

Typical Starting Torque

 N/A ≤ 0.01 N·m

Applications

N/A Fields of application that clearly unfold the benefits of encoder AR60:

  • Position Feedback in any kind of general machinery and factory automation
  • Construction machinery
  • Utility vehicles / trucks
  • Gantry cranes
  • Food & Beverage Industry
  • Filling plants
  • Presses
  • Your individual application

Features

N/A

  • Single- and multi turn: Resolution up to 28 Bit
  • Wearless electronic multi turn: contact-and battery less, self-energetic
  • 200 g shock resistance/ 20 g vibration resistance
  • High temperature range: -40 ... +100ºC
  • Compact design: 32 mm mounting depth
  • Interfaces: SSI, CANopen, Analog
  • CANopen interface with E1 approval for vehicle application
  • Analog interface: Measuring range in Degrees; Current or voltage output

Additional Information

N/A The robust design allows up to 5,000 rpm within a wide temperature range of -40°C ... +100°C.

With an installed depth of only 32 mm, this encoder is the most compact type in its class. Valuable space has been saved - to the benefit of the overall machinery design.
