The AD58 is an absolute encoder with a true geared Multi-Turn and optical sensing technology: The mechanical design consists of two ball bearings and a flexible torque support. The AD58 is ideally suited for integration into BLDC servo motors for demanding Applications such as CNC precision machining and printing in professional quality. Through its low current consumption the AD58 is contributing to lowering cost of ownership.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A AD 58

Type

 N/A Absolute Encoder

Certification

 N/A

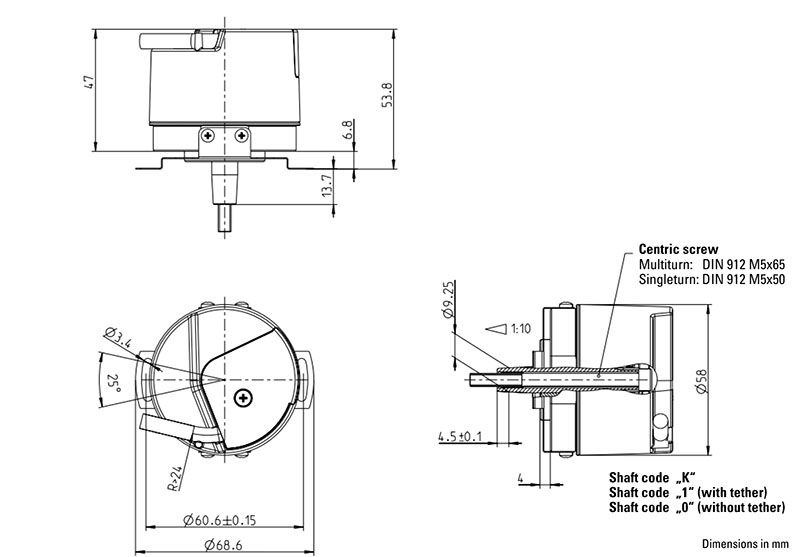

Mechanical

Housing Diameter

 N/A 58 mm

Shaft Diameter (Tapered Hollow Shaft)

 N/A 10 mm

Shaft Diameter (Tapered Solid Shaft)

 N/A 10 mm

Shaft Diameter (Hollow Shaft)

 N/A 10 mm12 mm

Flange (Mounting of Housing)

 N/A Tether

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP40)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP50)

Maximum Speed (Continuous)

 N/A 10,000 rpm

Maximum Speed (Short Term)

 N/A 12,000 rpm

Typical Starting Torque

 N/A ≤ 1 N·m

Features

N/A

  • For brushless servo motors
  • All-digital and highspeed
  • +120ºC operating temperature
  • Optical encoder with a true geared multiturn
  • Interface: SSI, BiSS-B or BiSS-C
  • Option Sine-wave 1 Vpp: Harmonic distortion less than 1%
  • Bandwidth 500 kHz

Additional Information

N/A Fully digital control loop
The new and completely digital OptoAsic technology enables the transition to a truly digital drive system. The conventional absolute encoders still have analog sine wave signals for the feedback of speed and position data. The AD 58, however, provides fully digital position data up to 22 Bit ((Single-Turn)) and 12 Bit (Multi-Turn) over the BiSS interface with a variable clock rate up to 10 MHz. This corresponds a (Single-Turn) resolution of more than 4 million measured steps
