Single-turn and Multi-turn Encoder for high performance motion control; Encoder for Functional Safety applications (SIL2 PLd, SIL3 PLe, category 3); Single Cable Solution with ACURO® link interface for 2 and 4 wire applications; Most compact absolute multiturn encoder of its class (Mounting depth: 29 mm); Motor winding temperature sensor input; Resolution: up to 20 Bit ST + 12 Bit MT; Wide operating temperature range (-40ºC to +115ºC); Up to 12,000 rpm continuous operation; Encoder data stored in “Electronic Data Sheet (EDS)” inside encoder
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A AD 37

Type

 N/A Motor Feedback Encoder

Certification

 N/A

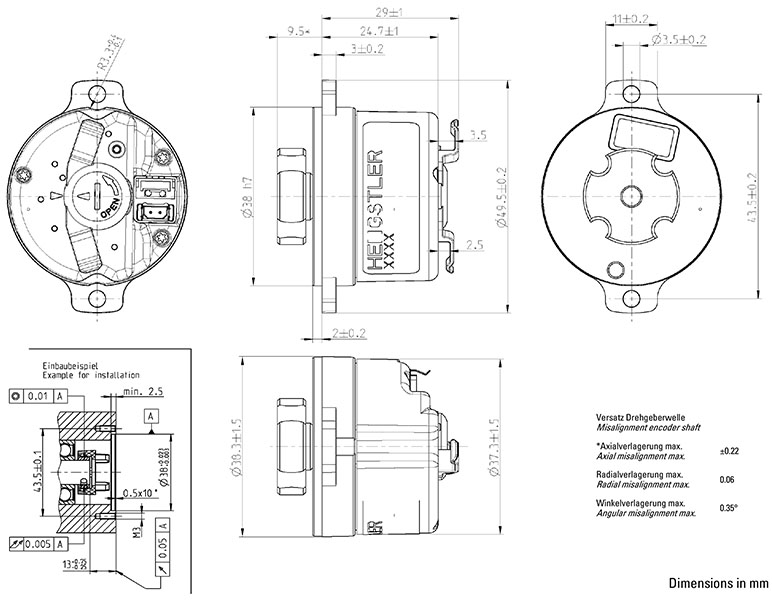

Mechanical

Housing Diameter

 N/A 38.3 mm

Shaft

 N/A Shaft with integrated Double-Cardanic coupling hub

Mounting Depth

 N/A 29.0 mm

Mounting Flange

 N/A Direct Flange Mount (Fixing Screws M3)

Protection Class Shaft Input

 N/A Ingress Protection (IP40)

Protection Class Housing

 N/A Ingress Protection (IP40) (In combination with mating connector and plug)

Maximum Including Coupling Axial Shaft Load

 N/A 25 N

Maximum Including Coupling Radial Shaft Load

N/A 6.5 N

Maximum Speed

 N/A ≤ 12,000 rpm

Typical Starting Torque

 N/A ≤ 1 N·cm

Features

N/A

  • Single-Turn and Multi-Turn Encoder for high performance motion control
  • Encoder for Functional Safety applications (SIL2 PLd, SIL3 PLe, category 3)
  • Single Cable Solution with ACURO® link interface for 4 wire applications
  • Most compact absolute multiturn encoder of its class (Mounting depth: 29 mm)
  • Motor winding temperature sensor input
  • Resolution: up to 20 Bit ST + 12 Bit MT
  • Wide operating temperature range (-40ºC ... +115ºC)
  • Encoder data stored in "Electronic Data Sheet (EDS)" inside encoder
