Technical Specs

Brands

 N/A
Dynapar™

Hengstler

Model

 N/A AD 36

Type

 N/A Absolute Encoder

Code

 N/A Absolute

Resolution Single-Turn

 N/A 12 to 22 bits

Resolution Multi-Turn

 N/A 12 bits

Absolute Accuracy (±)

 N/A 35 in

Certification

 N/A

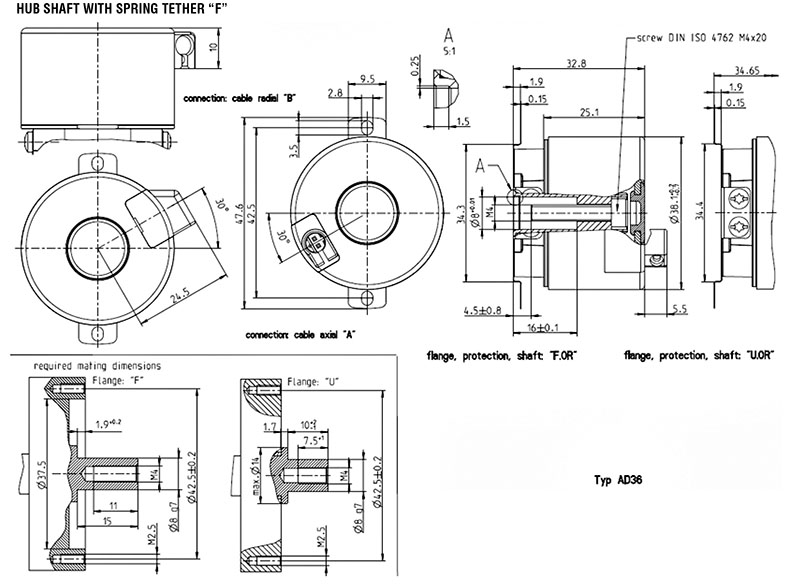

Mechanical

Housing Diameter

 N/A 38.1 mm

Maximum Speed (Continuous)

 N/A 10,000 rpm

Maximum Speed (Short Term)

 N/A 12,000 rpm

Features

N/A

  • Compact Dimensions Compatible with Size 15 Resolvers
  • Up to 22 Bit Singleturn and 12 Bit True Multiturn Absolute Positioning
  • Optional Sinewave 1Vpp Output for Easy Integration Into Older Controls
