Technical Specs

Brands

 N/A
Dynapar™

Hengstler

Model

 N/A AD 25

Type

 N/A Absolute Encoder

Code

 N/A Absolute Optical

Resolution Single-Turn

 N/A 13 to 22 bits

Resolution Multi-Turn

 N/A 12 bits

Absolute Accuracy (±)

 N/A 0.01º mechanical (36 arc-sec.)

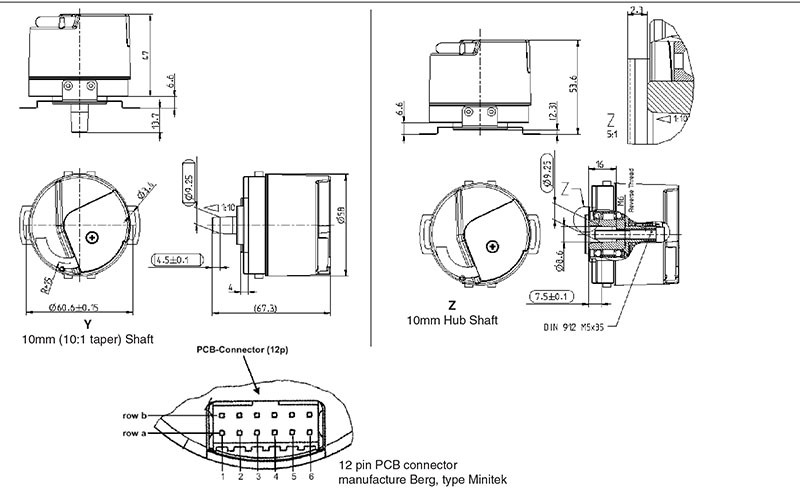

Diameter

 N/A 2.28 in

Length

 N/A 1.85 in

Axial Shaft Loading

 N/A 5 lb

Radial Shaft Loading

 N/A 20 lb

Certification

 N/A

Features

N/A

  • Special Conical Shaft for Concentric Motor Mounting
  • Up to 22 Bits of Single-turn Absolute Positioning for Smooth Low Speed Motor Performance
  • Integrated On-Board Diagnostics to Monitor Encoder Health
