Type 101/103/301/309 is a small, mechanical revolution and stroke counter. It is available in various variants with a 4 or 5-digit display. Depending on needs, versions with and without a housing are available. The device can be installed as a surface-mount or flush. The unit is not equipped with a reset function.

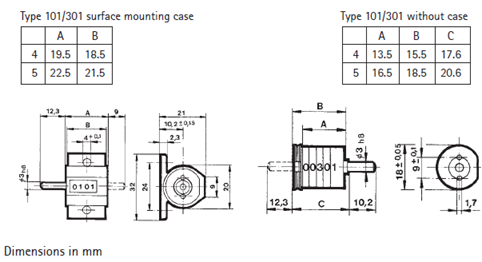

Counters in this series are available with surface-mounting case, with flush-mounting case or without any housing.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A 101/103/301/30

Type

 N/A Counter

Display

 N/A 4 or 5-Digit, depending on version

Digit Height

 N/A 4.2 mm

Mounting

 N/A Depending on version

Case

 N/A Plastic Polyoxymethylene (POM) Black

Approximate Weight

 N/A 5 g

Approximate Weight with Case

 N/A 9 g

Counting Modes

 N/A Revolution counter: ± adding in the specified direction, subtracting in reverse direction.
Stroke Counter: + is fixed, adding

Transmission Ratio

 N/A 1:1 or 1:10, depending on version

Maximum Speed

 N/A Revolution counter: 1.000 rpm, at a transmission ratio of 1:10 max. 100 rpm. Stroke counter: max. 500 strokes/min., switching distance min. 46º, max. 49º

Revolution Counter Torque

 N/A 0.05 N·cm

Stroke Counter Torque

 N/A 1.0 N·cm

Reset

 N/A None

Features

N/A

  • Without reset
  • With or without case
  • Miniature size
