Electromechanical hour meter suitable for the toughest operating conditions. This time counter meets the IP67 requirements, both for the product and enclosure. The design has a best-in-class installation depth of 43.8 mm and is designed as a direct replacement for Honeywell hour meters.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A 636-DC

Type

 N/A Counter

Display

 N/A 7-digit (5 hours + 2 decimal)

Digit Height

 N/A 4 mm0.16 in

Approximate Power Consumption

 N/A 30 mW

Storage Temperature

 N/A -40 to 85 ºC

Counting Range

 N/A 0 to 99 999,99 h

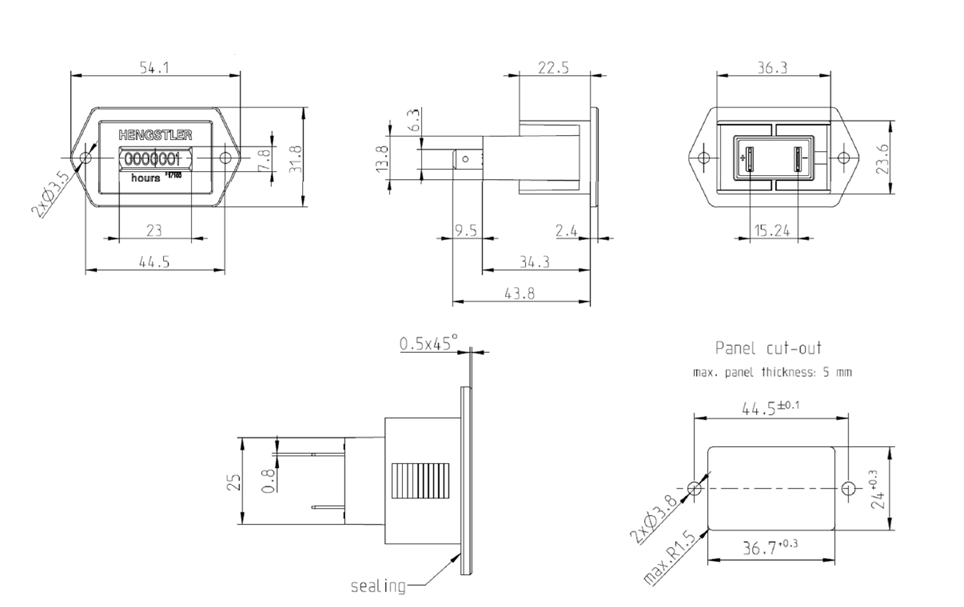

Panel Cutout Size

 N/A 1.45 x 0.95 in37 x 24 mm

Maximum Panel Thickness

 N/A 5 mm0.197 in

Direct Current (DC) Power Supply Voltage

 N/A 5 to 30 V

Note for Supply Voltage

 N/A Protected for reverse polarity

Features

N/A

  • Best-in-class mounting depth 43,8 mm [1.72"]
  • Wide temperature range
  • IP 67 for both the product and the enclosure
  • Standard electrical connection - 6.3 mm (1/4") male blade
  • High vibration stability and shock resistance
  • Low power consumption
  • Modifications upon customer request possible
