Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A RX/TX Repeater

Type

 N/A Signal Enhancement

Direct Current (DC) Supply Voltage (Vcc)

 N/A 5 to 24 V

Maximum Current Consumption

 N/A 20 mA

Maximum Frequency

 N/A Up to 1 MHz

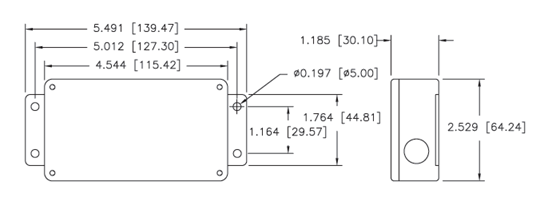

Enclosure

 N/A Ingress Protection (IP54) (Dust Proof)

Earth Circuit

 N/A Grounded to Case

Input Voltage

 N/A 24 VDC Max Diff

Output Voltage

 N/A 5 VDC or Vcc

Maximum Channel Output Current

 N/A 30 mA

Applications

N/A Repeat differential signals for data transmission over long distances. To properly terminate differential signals to eliminate/ reduce signal distortions. Increase output current drive capability in order to drive multiple receivers

Features

N/A The RX/TX Repeater retransmits signals from an encoder output in order to drive signals over a longer distance with reduced noise and distortion free waveforms. The input is equipped with a Differential Line Receiver and a Differential Line Driver. It takes the differential signals (A, A', B, B', Z, Z'), squares the signals up, and then repeats the signals at the outputs.

Benefits are greater immunity from electrical noise, signal distortion, and interference, especially with long cable runs. The output signal can be 5 VDC or an amplitude equivalent to Vcc.
