Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A TRP

Type

 N/A Encoder

Maximum Shaft Speed

 N/A 6000 rpm. Higher speeds may be achievable - contact Customer Service.

Shaft Material

 N/A Stainless Steel

Radial Shaft Load

 N/A 5 lb max. Rated load of 2 to 3 lb for bearing life of 1.2 x 1010 revolutions

Axial Shaft Load

 N/A 5 lb max. Rated load of 2 to 3 lb for bearing life of 1.2 x 1010 revolutions

Housing

 N/A Static Dissipative Nylon Composite

Non-Condensing Relative Humidity

 N/A 98 %

Vibration

 N/A 10 g @ 58 to 500 Hz

Shock

 N/A 80 g @ 11 ms duration

Common Applications

N/A Web Tension Control, Paper Monitoring, Glue Dispensing, Linear Material Monitoring, Cut-to- Length, Conveyor Systems, Ink Jet Printing, Laser Printing, Labeling, Document Handling

Features

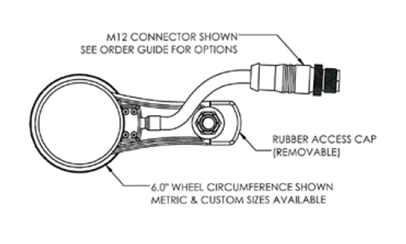

N/A The TRP Tru-TracPro is the programmable upgrade to the TR1 Tru-Trac®. It offers high resolution, user selectable waveforms, and many other features when used with the PR2 Programmer. The identical form factor to the TR1 allows for drop in interchangeability with existing systems.

  • All-in-one field programmable encoder, measuring wheel & spring loaded torsion arm
  • Resolutions from 1-100,000 CPR - no need to change wheel size
  • Customizable waveform output - choose from 40 options
  • Teach index location
  • Field calibration for better performance and accuracy
  • Get up and running quickly with the optional PR2 programmer
  • Spring loaded torsion arm makes wheel pressure adjustments easy
  • Easily installed in a vertical, horizontal or upside down orientation
  • Fast installation for mounting on any surface
  • Reduce cost and inventory with a simplified system design - program as needed
  • Gear option is available when used with an optional rack
