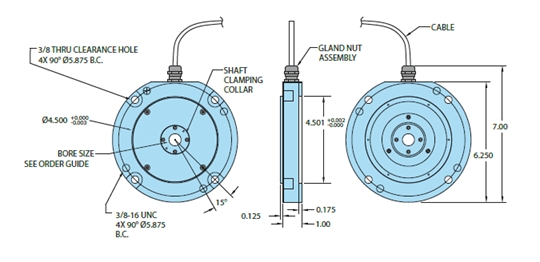

The Model 865T C-Face encoder is a rugged, high resolution encoder designed to mount directly on NEMA C-Face motors. Both sides of the encoder are C-Face mounts, allowing additional C-Face devices to be mounted to this encoder. Unlike many C-Face kit type encoders, the Model 865T contains precision bearings and an internal flex mount, virtually eliminating encoder failures and inaccuracies induced by motor shaft runout or axial endplay. The advanced Opto-ASIC design provides advanced noise immunity necessary for many industrial applications.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A 865T

Type

 N/A Encoder

Maximum Shaft Speed

 N/A 6000 rpm. Higher speeds may be achievable, contact Customer Service.

Housing

 N/A Type 316 Stainless Steel

Moment of Inertia

 N/A 3.3 x 10-3 oz-in-sec2 Typical

Storage Temperature

 N/A -25 to 100 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Vibration

 N/A 10 g @ 58 to 500 Hz

Shock

 N/A 50 g @ 11 ms duration

Common Applications

N/A Motor Feedback, Velocity & Position Control, Conveyors, Variable Speed Drives, Mixing & Blending Motors, Assembly & Specialty Machine

Features

N/A

  • C-Face thru-bore encoder with stainless steel housing
  • Fits NEMA Size 56C thru 184C motor faces (4.5" AK)
  • Slim profile - only 1.00" deep
  • Incorporates Opto-ASIC technology
  • Resolutions to 4096 CPR

Additional Information

N/A This encoder is ideal for applications using induction motors and flux vector control. The 1.00" thick model 865T provides speed and position information for drive feedback in a slim profile. The thru-bore design allows fast and simple mounting of the encoder directly to the accessory shaft or to the drive shaft of the motor, using the standard motor face (NEMA sizes 56C - 184C). The tough Type 316 Stainless Steel housing resists the corrosion and hazards of a caustic industrial environment.
