The Thru-Bore Series Accu-Coder™ Model 776 encoder is designed to fit directly on either a motor or other shaft where position, direction, or velocity information is needed. The advanced Opto-ASIC based electronics provide the superior noise immunity necessary in many industrial applications. The Model 776 conveniently features a clamp type mount for fast and easy mounting over a large range of shaft sizes. An optional anti-rotation flex mount maintains housing stability.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A 776

Type

 N/A Encoder

Maximum Shaft Speed

 N/A 3500 rpm. Higher speeds may be achievable, contact Customer Service.

Housing

 N/A All Metal Construction

Moment of Inertia

 N/A 3.3 x 10-3 oz-in-sec2 Typical

Storage Temperature

 N/A -25 to 100 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Vibration

 N/A 10 g @ 58 to 500 Hz

Shock

 N/A 50 g @ 11 ms duration

Common Applications

N/A Motor Feedback, Velocity & Position Control, Robotics, Conveyors, Material Handling

Features

N/A

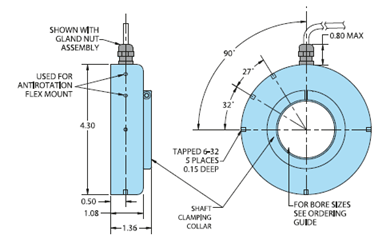

  • Slim profile - Only 1.36" in depth
  • Thru-bore design for easy mounting
  • Incorporates Opto-ASIC technology
  • Resolutions to 4096
  • Bore options to 1.875"
  • CE marking available
