The Model 770 C-Face encoder is a rugged, high resolution encoder designed to mount directly on NEMA C-Face motors. Both sides of the encoder are C-Face mounts, allowing additional C-Face devices to be mounted to this encoder. Unlike many C-Face kit type encoders, the Model 770 contains precision bearings and an internal flex mount, virtually eliminating encoder failures and inaccuracies induced by motor shaft runout or axial endplay. The advanced Opto-ASIC design provides the advanced noise immunity necessary for many industrial applications. This encoder is ideal for applications using induction motors and flux vector control.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A 770

Type

 N/A Encoder

Maximum Shaft Speed

 N/A 6000 rpm. Higher speeds may be achievable, contact Customer Service.

Housing

 N/A All Metal Construction

Moment of Inertia

 N/A 3.3 x 10-3 oz-in-sec2 Typical

Storage Temperature

 N/A -25 to 100 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Vibration

 N/A 10 g @ 58 to 500 Hz

Shock

 N/A 50 g @ 11 ms duration

Common Applications

N/A Motor Feedback, Velocity & Position Control, Conveyors, Variable Speed Drives, Mixing & Blending Motors, Assembly & Specialty Machine

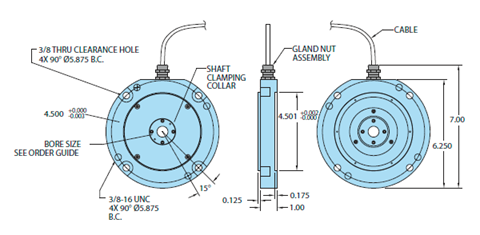

Features

N/A

  • Slim profile - only 1.00" deep
  • Fits NEMA Size 56C thru 184C motor faces (4.5" AK)
  • Incorporates Opto-ASIC technology
  • Resolutions to 4096 CPR

Additional Information

N/A The Model 770 provides speed and position information for drive feedback in a slim profile - only 1.00" thick. The thru-bore design allows fast and simple mounting of the encoder directly to the accessory shaft or to the drive shaft of the motor, using the standard motor face (NEMA sizes 56C - 184C). The tough, all-metal housing resists the vibration and hazards of an industrial environment."
