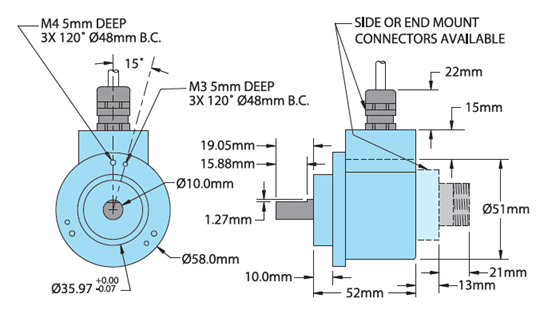

The Model 758 Size 58 Accu-Coder® is a heavy-duty, extremely rugged, reliable, yet compact European standard size 58 millimeter diameter encoder, designed for harsh factory and plant floor environments. Shaft loading is no problem for the double-shielded ball bearings; their 80 lb load rating ensures a long operating life. With the optional heavy-duty shaft seal, the Model 758 is rated IP67. Two European standard mounting options are available: Clamping Flange (20 Type) or Synchro Flange (26 Type). The Model 758 is the perfect replacement encoder for units requiring the European mount.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A 758

Type

 N/A Shaft Encoder

Maximum Shaft Speed

 N/A 8000 rpm. Higher speeds may be achievable, contact Customer Service.

Housing

 N/A Black Non-Corrosive Finish

Bearings

 N/A Precision ABEC Ball Bearings

Radial Shaft Load

 N/A 80 lb max. Rated load of 20 to 40 lb for bearing life of 1.5 x 109 revolutions

Axial Shaft Load

 N/A 80 lb max. Rated load of 20 to 40 lb for bearing life of 1.5 x 109 revolutions

Moment of Inertia

 N/A 5.2 x 10-4 oz-in-sec2

Storage Temperature

 N/A -25 to 85 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Vibration

 N/A 20 g @ 58 to 500 Hz

Shock

 N/A 75 g @ 11 ms duration

Common Applications

N/A Motion Control Feedback, Machine and Elevator Control, Food Processing, Robotics, Material Handling, Conveyors, Textile Machines

Features

N/A

  • Standard Size 58 mounting (58 mm diameter)
  • Up to 30,000 CPR
  • 80 lb max. axial and radial shaft loading
  • High temperature option (100ºC)
  • IP67 sealing available
