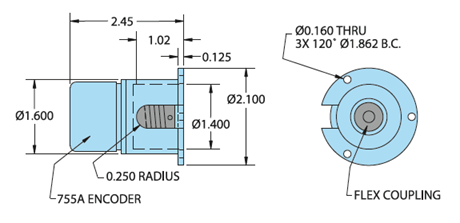

With its integral shaft coupling, the Model 755A NEMA Mount Accu-Coder® mounts directly onto NEMA motors. It is designed for easy installation on industrial size 23 or 34 motor frames. It features standard bolt circle patterns, and can accommodate shaft sizes of 0.250", 0.375", or 6 mm. With its rugged all metal housing and wide range of CPR options, it will fit in many different applications, providing years of trouble free use.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A 755A NEMA

Type

 N/A Encoder

Maximum Shaft Speed

 N/A 7500 rpm. Higher shaft speeds may be achievable, contact Customer Service.

Housing

 N/A Black Non-Corrosive Finish

Bearings

 N/A Precision ABEC Ball Bearings

Moment of Inertia

 N/A 2.8 x 10-4 oz-in-sec2

Storage Temperature

 N/A -25 to 85 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Vibration

 N/A 10 g @ 58 to 500 Hz

Shock

 N/A 50 g @ 11 ms duration

Common Applications

N/A Robotics, Assembly Machines, Motor-Mounted Feedback, Phototypesetters, Printers and Digital Plotters, Elevator Controls, Medical Diagnostic Equipment

Features

N/A

  • Standard NEMA mounting
  • Up to 30,000 CPR
  • High temperature option
