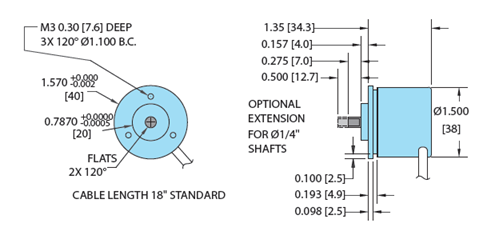

The Model 755A Size 15 Accu-Coder® is ideal for applications requiring a small, high precision, high performance encoder. Approximately 1.5" in diameter and 1.5" long, it will fit where many encoders cannot. Designed with all-metal construction and shielded ball bearings, it will provide years of trouble-free use. The standard servo mount (S) version is available with a variety of shaft sizes and lengths. Three additional servo style mounts (S1, S2, S3) are also available. The optional flange mounting (MF) is ideal for applications requiring a bolt-on, high precision encoder. With its high reliability and quick delivery, the Model 755A encoder is the perfect replacement encoder in this size category.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A 755A

Type

 N/A Shaft Encoder

Maximum Shaft Speed

 N/A 7500 rpm. Higher speeds may be achievable, contact Customer Service.

Housing

 N/A Black Non-Corrosive Finish

Radial Shaft Load

 N/A 5 lb

Axial Shaft Load

 N/A 3 lb

Moment of Inertia

 N/A 2.8 x 10-4 oz-in-sec2

Storage Temperature

 N/A -25 to 85 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Vibration

 N/A 10 g @ 58 to 500 Hz

Shock

 N/A 50 g @ 11 ms duration

Common Applications

N/A Robotics, Assembly Machines, Motor-Mounted Feedback, Phototypesetters, Printers and Digital Plotters, Elevator Controls, Medical Diagnostic Equipment

Features

N/A

  • Miniature size (1.5" diameter)
  • Up to 30,000 CPR
  • Servo or flange mounting
  • 1 MHz frequency response available
  • Extended temperature operating range available
