Designed as a drop in replacement for the Siemens 1XP8001 encoder, the DR686 is ready for delivery. The unique threaded shaft made this encoder hard to find, but it is a standard order at EPC.

Configurations can be ordered with either 1024 or 2048 CPR, with a 12 pin connector at the end of 18" of cable.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A DR686

Type

 N/A Replacement Encoder

Input Voltage

 N/A 4.75 to 28 VDC (16 VDC Max at 100 ºC)

Input Current

 N/A 100 mA max with no output load

Output Type

 N/A Line Driver - 20 mA max per channel (Meets RS 422 at 5 VDC supply)

Frequency Response

 N/A 200 kHz

Operating Temperature

 N/A 0 to 100 ºC

Storage Temperature

 N/A -40 to 100 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Quadrature

 N/A 67.5º electrical or better is typical, 54º

Edge Separation

 N/A Electrical minimum at temperatures > 99 ºC

Features

N/A

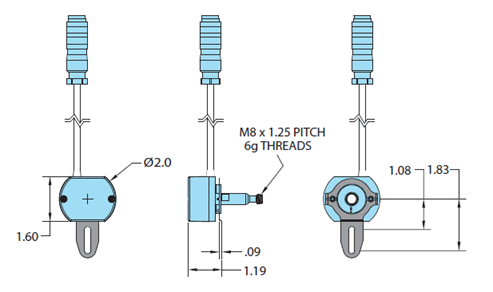

  • Low profile (1.19") encoder body
  • 2 piece construction; shaft screws into motor, then encoder attaches to shaft
  • 1024 and 2048 CPR available
  • Line Driver output
  • Flex Arm mounting system makes installation easy and allows for insulation and isolation from vibration
  • 12-pin connector at the end of 18" of cable
  • Advanced Opto-ASIC technology for superior noise immunity
  • Withstands temperatures up to 100º C
  • IP64 sealing
