The Accu-Coder® Direct Replacement Encoder DR580 is an exact substitute for the Dynapar® H23 used on Magnetek Vector/Inverter Duty motors. Available with CPRs of 1024, 2048, or 2500, the DR580 is a heavy-duty, rugged industrial encoder capable of withstanding higher temperatures and shock than the Dynapar H23. With either a body mount, or in-line connector option, the DR580 will provide a simple direct fit installation with superior performance for your motor mount application.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A DR580

Type

 N/A Replacement Encoder

Input Voltage

 N/A 4.75 to 28 VDC max for temperatures up to 70 ºC
4.75 to 24 VDC for temperatures between 70 ºC to 100 ºC

Input Current

 N/A 100 mA max with no output load

Input Ripple

 N/A 100 mV peak-to-peak at 0 to 100 kHz

Output Type

 N/A Line Driver - 20 mA max per channel (Meets RS 422 at 5 VDC supply)

Frequency Response

 N/A 200 kHz

Rise Time

 N/A <1 µs

Operating Temperature

 N/A 0 to 100 ºC

Storage Temperature

 N/A -25 to 85 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Features

N/A

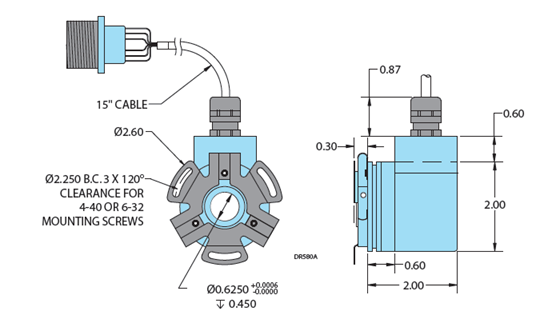

  • Rugged 2" industrial encoder with 2.25" flex mount and 5/8" bore
  • Able to withstand temperatures up to 100 ºC
  • Quadrature with index
  • Line Driver output
  • 5 to 28 VDC
  • 10-pin inline or body mount MS connectors
  • Frequency up to 200 kHZ
  • Sealing of IP64
