The Accu-Coder® DR553 is a direct replacement encoder for the Dynapar® Rotopulser Model 60. These encoders are used on ink jet printers, cut to length applications, motor drive speed feedback, and a variety of other applications. The DR553 is a drop-in replacement encoder for the Rotopulser 60 on Videojet Triumph and Excel Printers.
Unit of Measure

Technical Specs

Brands

N/A
Encoder Products Company

Model

N/A DR553

Type

N/A Replacement Encoder

Input Voltage

N/A 4.75 to 28 VDC max for temperatures up to 70 ºC

Input Current

N/A 100 mA max with no output load

Input Ripple

N/A 100 mV peak-to-peak at 0 to 100 kHz

Output Type

N/A Push-Pull - 20 mA max per channel
Line Driver - 20 mA max per channel (Meets RS 422 at 5 VDC supply)

Frequency Response

N/A Up to 100 kHz

Rise Time

N/A <1 µs

Operating Temperature

N/A 0 to 70 ºC

Storage Temperature

N/A -25 to 85 ºC

Non-Condensing Relative Humidity

N/A 98 %

Features

N/A

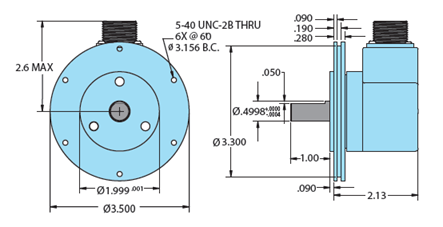

  • 3.5" servo hub on a rugged 2" encoder
  • 1/2" stainless steel shaft
  • Quadrature with index
  • Resolutions up to 2500 CPR (Other CPRs may be available, Contact Customer Service)
  • Line Driver and Push-Pull outputs
  • 5 to 28 VDC
  • 6-pin and 10-pin side mount MS connectors
  • IP64 sealing
