For many years, Encoder Products Company supplied an encoder to Goldengate Microsystems for their "Microcut" Controller, often used as backstop gauges in the printing and binding industry. Perfecta USA manufactures printing presses that use this Microcut Controller. With the RJ45 connector, replacement of this encoder is usually as simple as just plugging it in.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A DR274

Type

 N/A Replacement Encoder

Input Voltage

 N/A 4.75 to 28 VDC max for temperatures up to 70 ºC

Input Current

 N/A 100 mA max with no output load

Input Ripple

 N/A 100 mV peak-to-peak at 0 to 100 kHz

Output Type

 N/A Line Driver - 20 mA max per channel (Meets RS 422 at 5 VDC supply)

Frequency Response

 N/A 100 kHz

Rise Time

 N/A <1 µs

Operating Temperature

 N/A 0 to 70 ºC

Storage Temperature

 N/A -25 to 85 ºC

Non-Condensing Relative Humidity

 N/A 98 %

Features

N/A

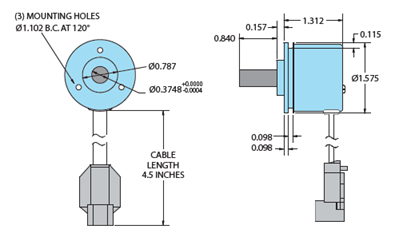

  • High precision 1.5" incremental encoder
  • Stainless steel 3/8" shaft
  • Quadrature A & B with reference channels
  • 500 CPR
  • Line Driver output
  • 4.5" of cable with RJ45 phone jack
  • 3 hole servo mount 120º apart
